108E
Hammond Manufacturing
Hammond Manufacturing

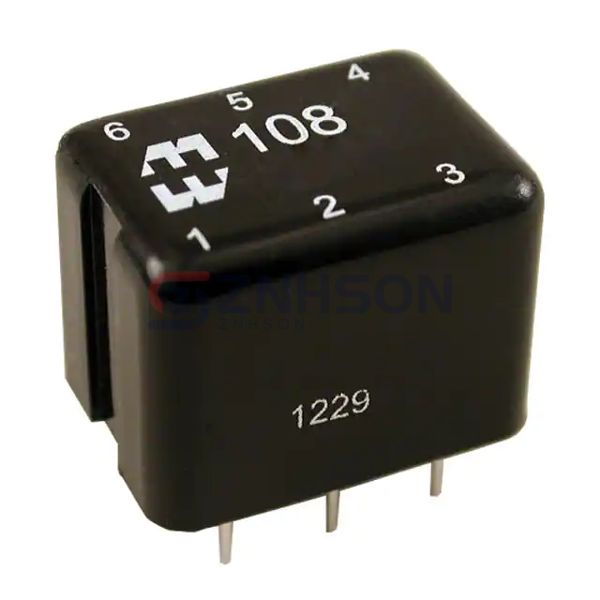

TRANSFORMER AUDIO 600CT/3.2
$27.39
Available to order
Reference Price (USD)
1+
$22.78000
10+
$20.10000
25+
$19.43000
50+
$17.42000
100+
$16.75000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 108E Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 13.71:1
- Impedance - Primary (Ohms): 600CT
- Impedance - Secondary (Ohms): 3.2
- DC Resistance (DCR) - Primary: 54Ohm
- DC Resistance (DCR) - Secondary: 400mOhm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 300Hz ~ 50kHz
- Frequency Response: ±1.75dB
- Voltage - Isolation: 100VRMS
- Insertion Loss: -
- Return Loss: -
- Power Level: 500mW
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.030" L x 0.770" W (26.16mm x 19.56mm)
- Height - Seated (Max): 0.770" (19.56mm)
- Termination Style: PC Pin
