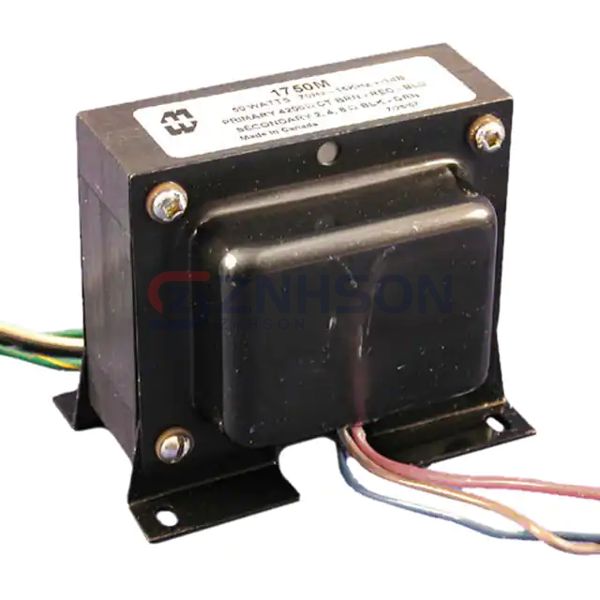

1750M
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER TUBE GUITAR AMP
$96.34
Available to order
Reference Price (USD)
1+
$79.19000
10+
$76.54600
25+
$71.26640
50+
$65.98760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Hammond Manufacturing 1750M Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Hammond Manufacturing for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 22.93:1
- Impedance - Primary (Ohms): 4.2kCT
- Impedance - Secondary (Ohms): 2, 4, 8
- DC Resistance (DCR) - Primary: 68Ohm
- DC Resistance (DCR) - Secondary: 160mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 70Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: -
- Insertion Loss: -
- Return Loss: -
- Power Level: 60W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 4.050" L x 3.050" W (102.87mm x 77.47mm)
- Height - Seated (Max): 3.563" (90.50mm)
- Termination Style: Wire Leads
