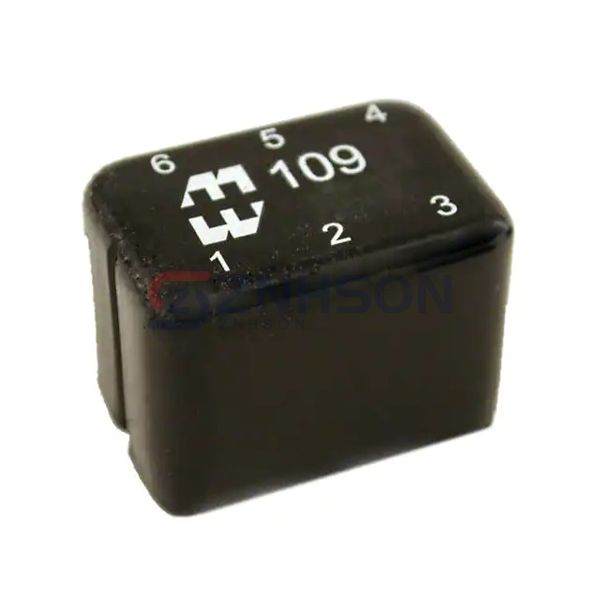

109R
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER AUDIO 10KCT/1.5KCT
$37.28
Available to order
Reference Price (USD)
1+
$30.99000
10+
$27.34500
25+
$26.43360
50+
$23.69900
100+
$22.78750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Hammond Manufacturing 109R Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Hammond Manufacturing for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 5.16:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 1.5kCT
- DC Resistance (DCR) - Primary: 384Ohm
- DC Resistance (DCR) - Secondary: 58Ohm
- Transformer Type: Miniature Epoxy Potted
- Frequency Range: 300Hz ~ 50kHz
- Frequency Response: ±1.5dB
- Voltage - Isolation: 100VRMS
- Insertion Loss: -
- Return Loss: -
- Power Level: 2W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.315" L x 0.930" W (33.40mm x 23.62mm)
- Height - Seated (Max): 0.920" (23.37mm)
- Termination Style: PC Pin
