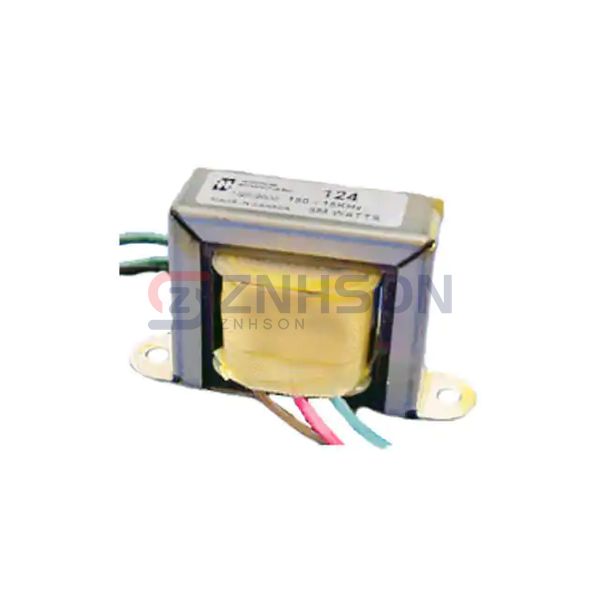

124D
Hammond Manufacturing
Hammond Manufacturing
TRANSFRMR AUDIO 7KCT/15.8KCT IMP
$46.95
Available to order
Reference Price (USD)
1+
$38.60000
10+
$37.30900
25+
$34.73560
50+
$32.16260
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Hammond Manufacturing 124D Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Hammond Manufacturing for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.49
- Impedance - Primary (Ohms): 7kCT
- Impedance - Secondary (Ohms): 15.8kCT
- DC Resistance (DCR) - Primary: 218Ohm, 236Ohm
- DC Resistance (DCR) - Secondary: 297Ohm, 394Ohm
- Transformer Type: Tube Driver and Speaker Matching
- Frequency Range: 150Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 500Vrms
- Insertion Loss: -
- Return Loss: -
- Power Level: 5W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 2.810" L x 1.460" W (71.37mm x 37.08mm)
- Height - Seated (Max): 1.680" (42.67mm)
- Termination Style: Wire Leads
