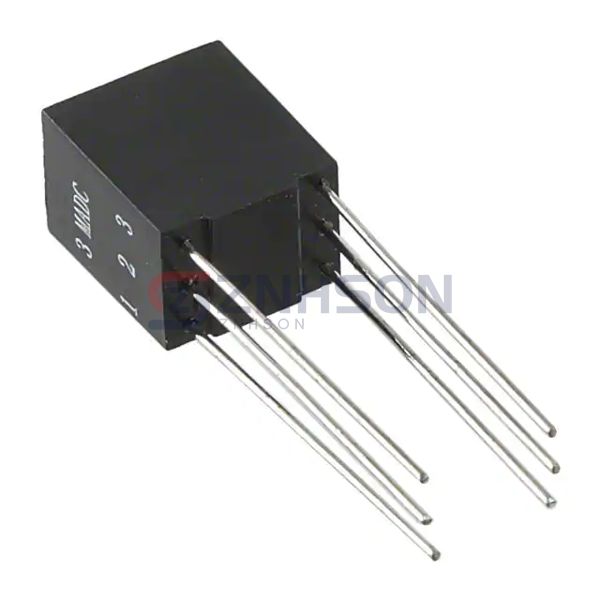

MET-22-T
Triad Magnetics
Triad Magnetics
TRANSFORMR 2.5KCT:2.5KCT 1.0MADC
$12.93
Available to order
Reference Price (USD)
1+
$12.07000
10+
$8.91200
25+
$8.22640
50+
$7.95220
100+
$7.73290
250+
$7.62316
500+
$7.54092
1,000+
$7.40381
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Triad Magnetics MET-22-T Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Triad Magnetics for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 2.5kCT
- Impedance - Secondary (Ohms): 2.5kCT
- DC Resistance (DCR) - Primary: 280Ohm
- DC Resistance (DCR) - Secondary: 350Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 40mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
