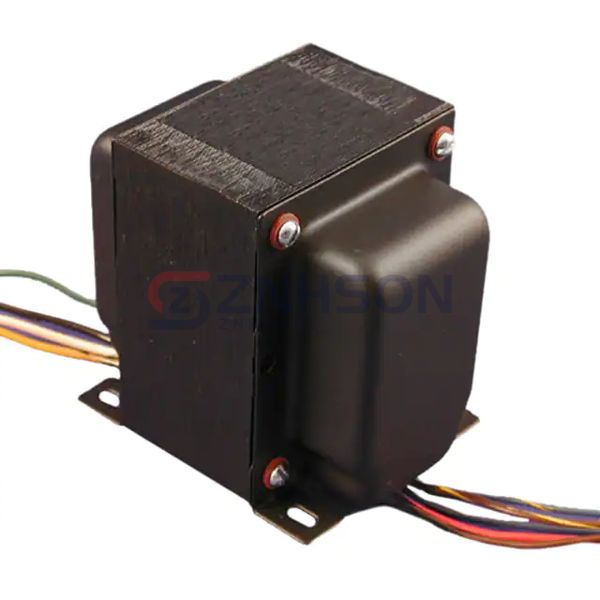

1650NA
Hammond Manufacturing
Hammond Manufacturing
AUDIOPHILE TUBE OUTPUT TRANSFRMR
$169.86
Available to order
Reference Price (USD)
1+
$149.58000
10+
$144.59400
25+
$134.62200
50+
$124.65000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Hammond Manufacturing 1650NA Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Hammond Manufacturing for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 4.3kCT
- Impedance - Secondary (Ohms): 4, 8, 16
- DC Resistance (DCR) - Primary: 37.19Ohm, 42.17Ohm
- DC Resistance (DCR) - Secondary: 244mOhm, 377mOhm, 490mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 30Hz ~ 30kHz
- Frequency Response: ±1dB
- Voltage - Isolation: 2000V @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 60W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 4.250" L x 3.130" W (107.95mm x 79.50mm)
- Height - Seated (Max): 3.810" (96.77mm)
- Termination Style: Wire Leads
