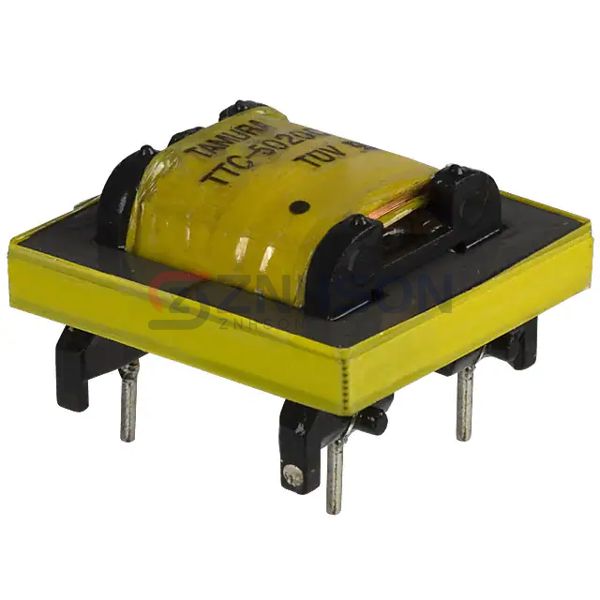

TTC-5020
Tamura
Tamura
TRANSFORMER COUPLING 600:301 OHM
$4.31
Available to order
Reference Price (USD)
1+
$4.58000
10+
$3.71300
25+
$3.00200
50+
$2.81240
100+
$2.68600
250+
$2.60700
500+
$2.52800
1,000+
$2.44900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your audio projects with Tamura TTC-5020 Audio Transformers, known for their robust construction and exceptional sound quality. These transformers are ideal for a wide range of applications, from PA systems to musical instruments, providing reliable and distortion-free performance. Count on Tamura for excellence in every component. Contact us now to discuss your requirements.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 301
- DC Resistance (DCR) - Primary: 152Ohm
- DC Resistance (DCR) - Secondary: 152Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: ±1dB ~ ±4dB
- Voltage - Isolation: 1875VRMS @ 1 Second
- Insertion Loss: 3.75dB Max @ 1kHz
- Return Loss: -
- Power Level: -20dB ~ 4dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 950-95, UL1950
- Mounting Type: Through Hole
- Size / Dimension: 0.886" L x 0.909" W (22.50mm x 23.10mm)
- Height - Seated (Max): 0.543" (13.80mm)
- Termination Style: PC Pin
