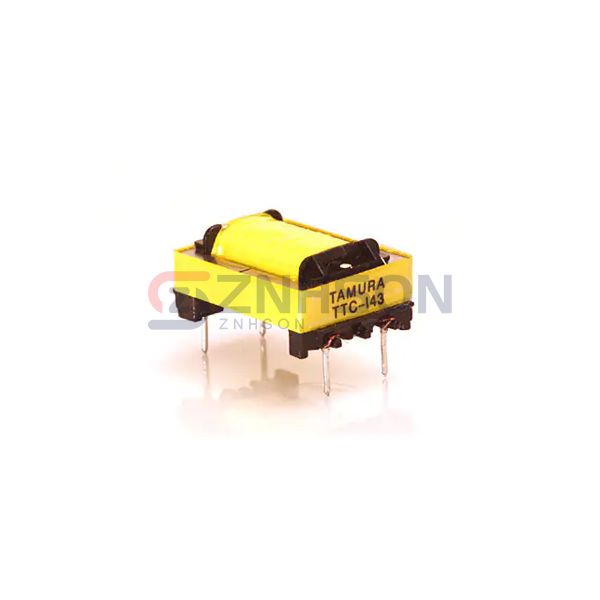

TTC-143
Tamura
Tamura
TRANSF TELE COUP 600:600 90MADC
$4.99
Available to order
Reference Price (USD)
360+
$5.42300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Tamura TTC-143 Audio Transformers, designed to deliver exceptional sound clarity and performance. These transformers are perfect for audio applications, ensuring signal integrity and noise reduction. Whether you're working on professional audio equipment or consumer electronics, our Audio Transformers provide reliable performance. Contact us today for a quote and elevate your audio projects with Tamura excellence.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.04
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600
- DC Resistance (DCR) - Primary: 75Ohm
- DC Resistance (DCR) - Secondary: 100Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: -2dB ~ 0.2dB
- Voltage - Isolation: 1500VRMS @ 1 Minute
- Insertion Loss: 1.7dB Max @ 1.8kHz
- Return Loss: 14dB Min @ 1.8kHz
- Power Level: -45dB ~ 10dB
- Operating Temperature: -
- Approval Agency: CSA-C22.2 No. 66-M1988, UL1863
- Mounting Type: Through Hole
- Size / Dimension: 0.799" L x 1.201" W (20.30mm x 30.50mm)
- Height - Seated (Max): 0.500" (12.70mm)
- Termination Style: PC Pin
