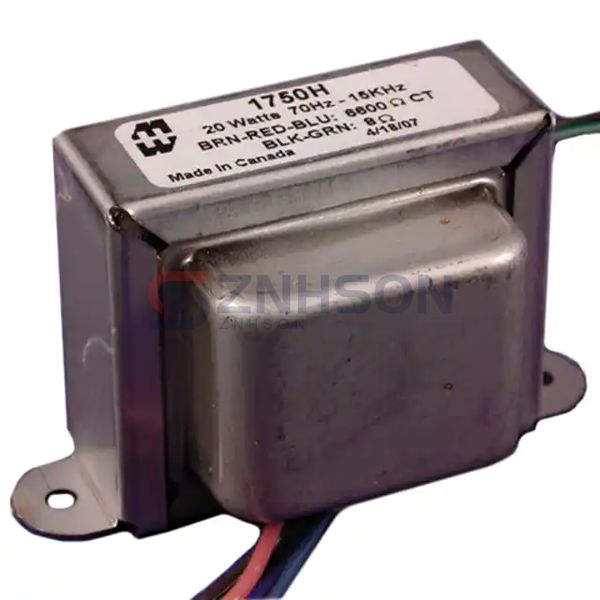

1750H
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER TUBE GUITAR AMP
$51.15
Available to order
Reference Price (USD)
1+
$41.41000
10+
$36.54000
25+
$35.32200
50+
$31.66800
100+
$30.45000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Hammond Manufacturing 1750H Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Hammond Manufacturing for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 28.72:1
- Impedance - Primary (Ohms): 6.6kCT
- Impedance - Secondary (Ohms): 8
- DC Resistance (DCR) - Primary: 428Ohm
- DC Resistance (DCR) - Secondary: 470mOhm
- Transformer Type: Push-Pull Audiophile, Ultra-Linear - Tube Output
- Frequency Range: 70Hz ~ 15kHz
- Frequency Response: ±1dB
- Voltage - Isolation: -
- Insertion Loss: -
- Return Loss: -
- Power Level: 20W
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 3.710" L x 2.400" W (94.23mm x 60.96mm)
- Height - Seated (Max): 2.371" (60.22mm)
- Termination Style: Wire Leads
