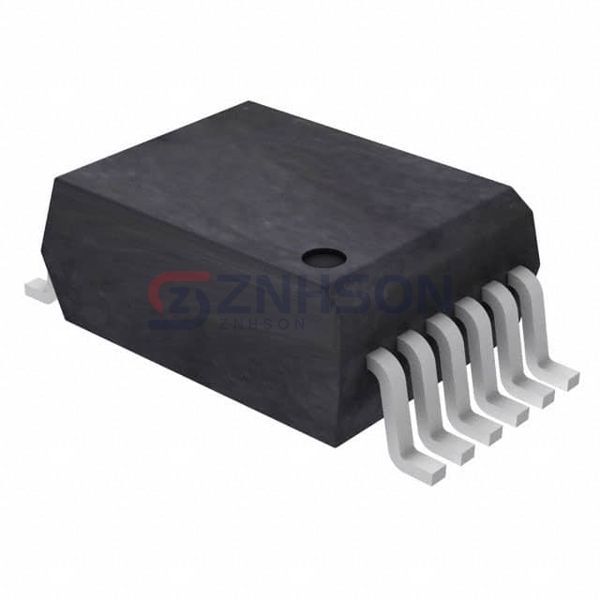

ACFL-6212T-560E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 2CH PSH PULL SO12
$3.83
Available to order
Reference Price (USD)
2,000+
$3.11100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited ACFL-6212T-560E Optoisolators - Logic Output are engineered for precision and reliability in demanding environments. Key features include high-speed data transmission, excellent EMI resistance, and robust packaging. Ideal for use in aerospace, defense, and telecommunications, these isolators deliver unmatched performance. Contact us to learn more or place an order!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 25kV/µs
- Input Type: DC
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 100ns, 100ns
- Rise / Fall Time (Typ): 10ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 12-BSOP (0.295", 7.50mm Width)
- Supplier Device Package: 12-SO
