HCPL-263L-500E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV OPEN COLL 8DIP GW
$2.45
Available to order
Reference Price (USD)
2,000+
$2.06550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Broadcom Limited HCPL-263L-500E Optoisolators - Logic Output provide exceptional electrical isolation for your critical circuits. Featuring fast response times, high isolation voltage, and compact design, these optoisolators are suited for applications in renewable energy, automotive electronics, and consumer devices. Enhance your project's safety and efficiency. Get in touch for pricing details!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: DC
- Output Type: Open Collector, Schottky Clamped
- Current - Output / Channel: 50 mA
- Data Rate: 15MBd
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 24ns, 10ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 15mA
- Voltage - Supply: 2.7V ~ 3.6V, 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-DIP Gull Wing
Related Products
Vishay Semiconductor Opto Division
VO2630-X009T
Broadcom Limited
HCPL-5400
Broadcom Limited
ACPL-024L-060E
Toshiba Semiconductor and Storage

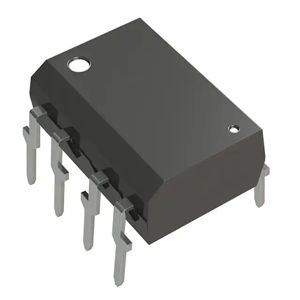

TLPN137(D4-TP1,F)
Broadcom Limited
HCPL-2211-300E
Broadcom Limited
HCPL-4661-520E
Toshiba Semiconductor and Storage
TLP2601(TP1,F)
Renesas Electronics America Inc

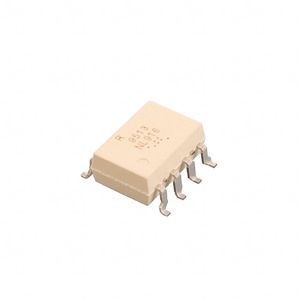

PS9513L3-V-AX
Broadcom Limited

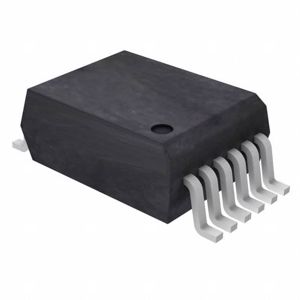

ACFL-6211T-560E
