ACPL-336J-500E
Broadcom Limited
Broadcom Limited
OPTOISO 5KV 1CH GATE DRIVER 16SO
$4.29
Available to order
Reference Price (USD)
1,700+
$3.08560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize safety and performance with Broadcom Limited ACPL-336J-500E Gate Driver Isolators, the go-to solution for high-voltage isolation. These isolators boast ultra-low power consumption, high noise immunity, and long-term durability, making them ideal for electric vehicles, industrial automation, and aerospace applications. Elevate your project with our expertise inquire today!
Specifications
- Product Status: Active
- Technology: Optical Coupling
- Number of Channels: 1
- Voltage - Isolation: 5000Vrms
- Common Mode Transient Immunity (Min): 30kV/µs
- Propagation Delay tpLH / tpHL (Max): 220ns, 250ns
- Pulse Width Distortion (Max): 120ns
- Rise / Fall Time (Typ): 80ns, 45ns
- Current - Output High, Low: 2A, 2A
- Current - Peak Output: 2.5A
- Voltage - Forward (Vf) (Typ): 1.55V
- Current - DC Forward (If) (Max): 20 mA
- Voltage - Output Supply: 15V ~ 30V
- Operating Temperature: -40°C ~ 105°C
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 16-SO
- Approval Agency: CSA, IEC/EN/DIN, UR
Related Products
onsemi
FOD8320R2V
Renesas Electronics America Inc
PS9332L-V-AX

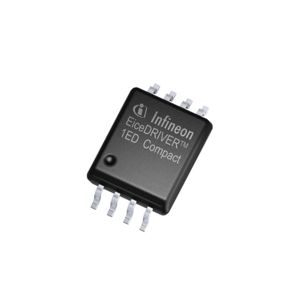

Infineon Technologies
1ED3890MU12MXUMA1
Skyworks Solutions Inc.
SI8275BB-IS1
Infineon Technologies
1EDI40I12AFXUMA1

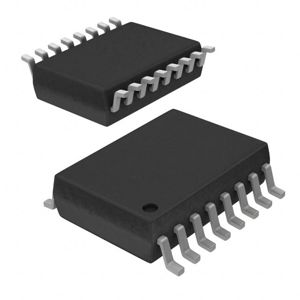

onsemi
