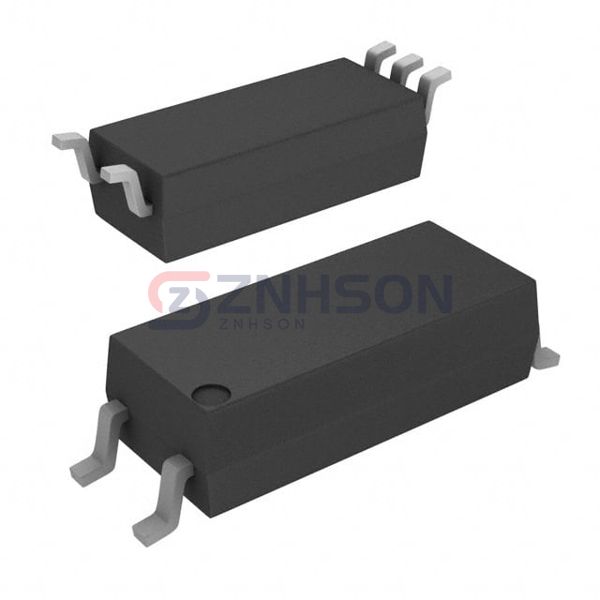

FOD8320R2V

onsemi
FOD8320R2V Preview
onsemi
OPTOISO 5KV 1CH GATE DRIVER 5SOP
$6.45
Available to order
Reference Price (USD)
1,000+
$1.82875
2,000+
$1.75313
5,000+
$1.70500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Technology: Optical Coupling
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Common Mode Transient Immunity (Min): 35kV/µs
  • Propagation Delay tpLH / tpHL (Max): 400ns, 400ns
  • Pulse Width Distortion (Max): 100ns
  • Rise / Fall Time (Typ): 60ns, 60ns
  • Current - Output High, Low: 2A, 2A
  • Current - Peak Output: 3A
  • Voltage - Forward (Vf) (Typ): 1.5V
  • Current - DC Forward (If) (Max): 25 mA
  • Voltage - Output Supply: 16V ~ 30V
  • Operating Temperature: -40°C ~ 100°C
  • Mounting Type: Surface Mount
  • Package / Case: 6-SOIC (0.362", 9.20mm Width), 5 Leads
  • Supplier Device Package: 5-SOP
  • Approval Agency: IEC/EN/DIN, UL

Related Products

Renesas Electronics America Inc

PS9332L-V-AX

Infineon Technologies

1ED3890MU12MXUMA1

Skyworks Solutions Inc.

SI8275BB-IS1

Infineon Technologies

1EDI40I12AFXUMA1

Skyworks Solutions Inc.

SI8273GBD-IS1

Infineon Technologies

1EDI20H12AHXUMA1

Power Integrations

SID1182KQ-TL

Skyworks Solutions Inc.

SI82394BD4-IS3

Toshiba Semiconductor and Storage

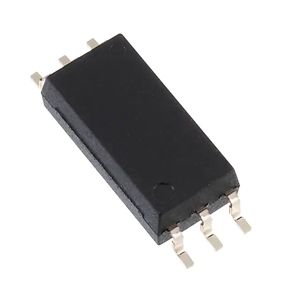

TLP5771(TP,E
