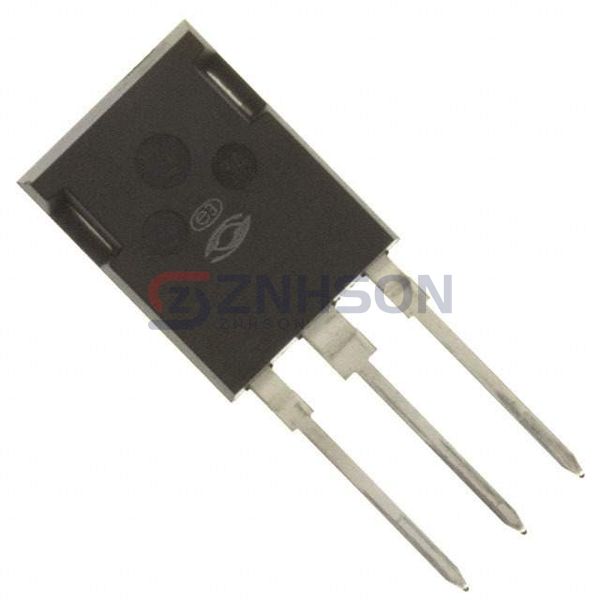

APT100GN120B2G
Microchip Technology
Microchip Technology
IGBT 1200V 245A 960W TMAX
$29.46
Available to order
Reference Price (USD)
1+
$28.40000
10+
$26.27300
25+
$24.14240
100+
$22.43830
250+
$20.59212
500+
$19.59802
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT100GN120B2G Single IGBT by Microchip Technology is a game-changer for energy-efficient systems. Ideal for HVAC, robotics, and power distribution, it boasts fast turn-off times and low gate drive requirements. Its advanced technology reduces energy waste and improves system longevity. Trust Microchip Technology for premium-quality transistors backed by exceptional support. Request a sample or quote now to start your next innovation!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 245 A
- Current - Collector Pulsed (Icm): 300 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 100A
- Power - Max: 960 W
- Switching Energy: 11mJ (on), 9.5mJ (off)
- Input Type: Standard
- Gate Charge: 540 nC
- Td (on/off) @ 25°C: 50ns/615ns
- Test Condition: 800V, 100A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
