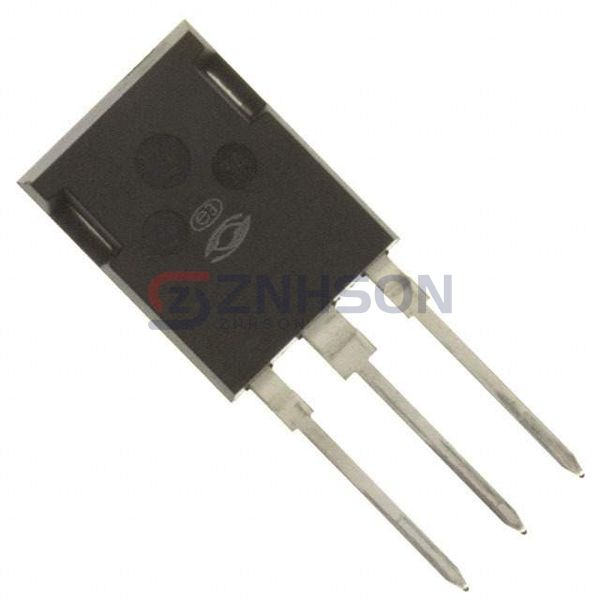

APT150GN60B2G
Microchip Technology
Microchip Technology
IGBT 600V 220A 536W SOT227
$20.08
Available to order
Reference Price (USD)
30+
$17.91133
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT150GN60B2G Single IGBT from Microchip Technology redefines reliability in power electronics. Tailored for renewable energy, telecom, and defense applications, it offers ultra-low switching losses and high-frequency operation. With anti-parallel diodes and short-circuit ratings, it s built for safety and performance. Microchip Technology stands behind every APT150GN60B2G with unmatched customer service. Start your order process by contacting our sales team today!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 220 A
- Current - Collector Pulsed (Icm): 450 A
- Vce(on) (Max) @ Vge, Ic: 1.85V @ 15V, 150A
- Power - Max: 536 W
- Switching Energy: 8.81mJ (on), 4.295mJ (off)
- Input Type: Standard
- Gate Charge: 970 nC
- Td (on/off) @ 25°C: 44ns/430ns
- Test Condition: 400V, 150A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: -
