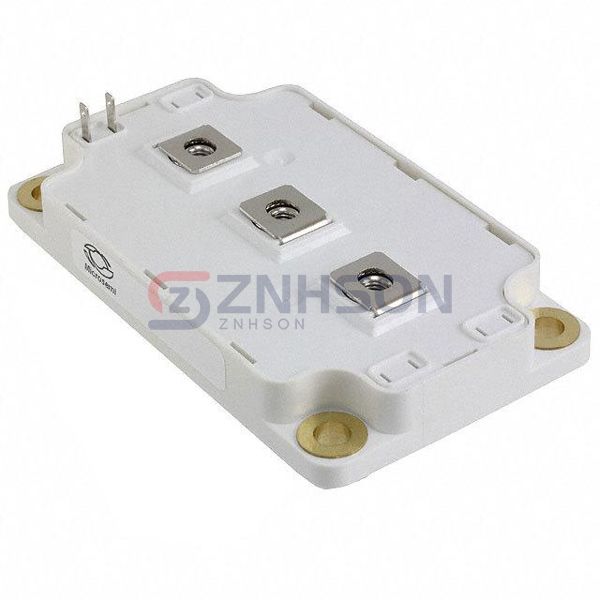

APTGT150DA120G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 220A 690W SP6
$159.18
Available to order
Reference Price (USD)
100+
$77.56640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGT150DA120G from Microchip Technology sets the standard in IGBT Modules with its compact design and high power density. Ideal for servo drives and plasma cutting, it combines fast switching with low conduction losses. Partner with Microchip Technology for top-tier semiconductor solutions. Get in touch for details!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 220 A
- Power - Max: 690 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 150A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 10.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP6
- Supplier Device Package: SP6
