B65684A0000R027
EPCOS - TDK Electronics
EPCOS - TDK Electronics

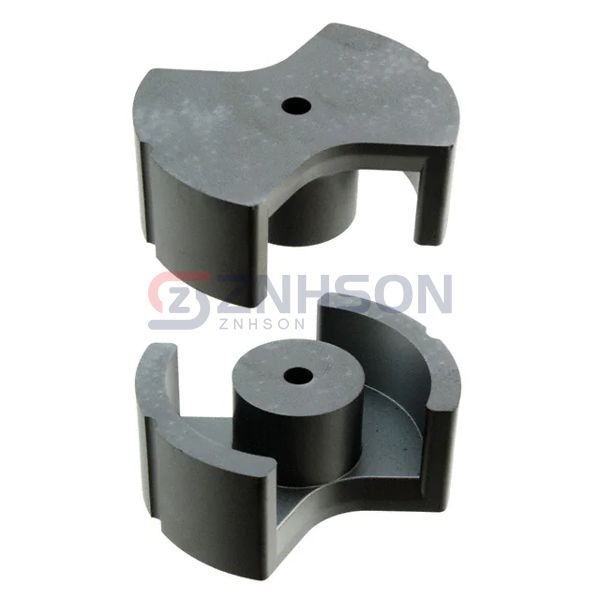

FERRITE CORE PM 9.2UH N27 2PCS
$31.20
Available to order
Reference Price (USD)
1+
$23.94000
10+
$21.41800
25+
$16.88240
50+
$16.37840
100+
$14.36260
250+
$13.25388
500+
$12.69954
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with EPCOS - TDK Electronics B65684A0000R027 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: PM
- Supplier Device Package: PM 62 x 49
- Material: N27
- Diameter: 2.441" (62.00mm)
- Inductance Factor (Al): 9.2 µH
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 1400
- Initial Permeability (µi): 2000
- Core Factor (ΣI/A) mm-1: 0.191
- Effective Length (le) mm: 109
- Effective Area (Ae) mm²: 570
- Minimum Core Cross Section (Amin) mm²: 470
- Effective Magnetic Volume (Ve) mm³: 62000
- Finish: Uncoated
- Height: 0.965" (24.50mm)
- Length: -
- Width: -
