B65686A0315A027
EPCOS - TDK Electronics
EPCOS - TDK Electronics

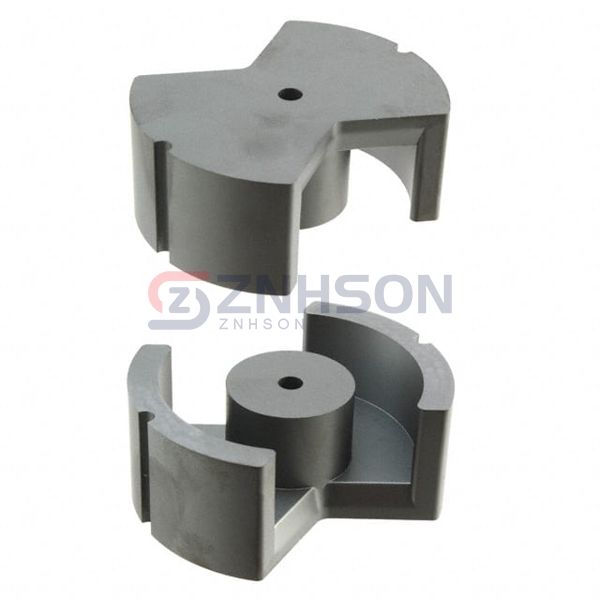

FERRITE CORE PM 315NH N27 2PCS
$86.98
Available to order
Reference Price (USD)
1+
$60.58000
10+
$53.84900
25+
$44.42560
50+
$43.07940
100+
$37.69440
250+
$35.00200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with EPCOS - TDK Electronics B65686A0315A027 Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: PM
- Supplier Device Package: PM 74 x 59
- Material: N27
- Diameter: 2.913" (74.00mm)
- Inductance Factor (Al): 315 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 41
- Initial Permeability (µi): 2000
- Core Factor (ΣI/A) mm-1: 0.162
- Effective Length (le) mm: 128
- Effective Area (Ae) mm²: 790
- Minimum Core Cross Section (Amin) mm²: 630
- Effective Magnetic Volume (Ve) mm³: 101000
- Finish: Uncoated
- Height: 1.161" (29.50mm)
- Length: -
- Width: -
