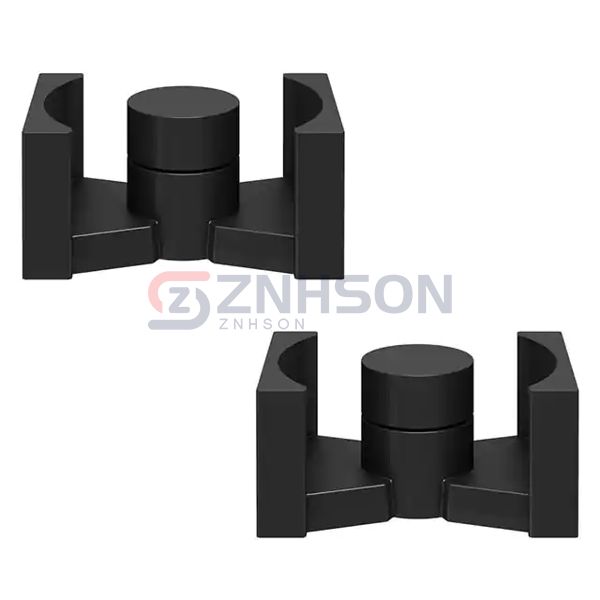

B65982Q0100K095
EPCOS - TDK Electronics
EPCOS - TDK Electronics
PQ65/60-N95-DG100
$72.92
Available to order
Reference Price (USD)
1+
$72.92000
500+
$72.1908
1000+
$71.4616
1500+
$70.7324
2000+
$70.0032
2500+
$69.274
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with EPCOS - TDK Electronics B65982Q0100K095 Ferrite Cores, designed for exceptional magnetic properties and longevity. These cores are widely utilized in DC-DC converters, inductors, and high-frequency transformers. Their superior impedance characteristics make them perfect for suppressing electromagnetic noise. Whether for medical devices or automotive systems, our Ferrite Cores provide reliable solutions. Submit your inquiry today and let us help you find the perfect fit!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 65 x 60
- Material: N95
- Diameter: -
- Inductance Factor (Al): 100 nH
- Tolerance: ±10%
- Gap: Distributed Gapped
- Effective Permeability (µe): -
- Initial Permeability (µi): 3000
- Core Factor (ΣI/A) mm-1: 0.228
- Effective Length (le) mm: 137
- Effective Area (Ae) mm²: 171
- Minimum Core Cross Section (Amin) mm²: 531
- Effective Magnetic Volume (Ve) mm³: 81950
- Finish: Uncoated
- Height: 1.181" (30.00mm)
- Length: 2.559" (65.00mm)
- Width: 1.772" (45.00mm)
