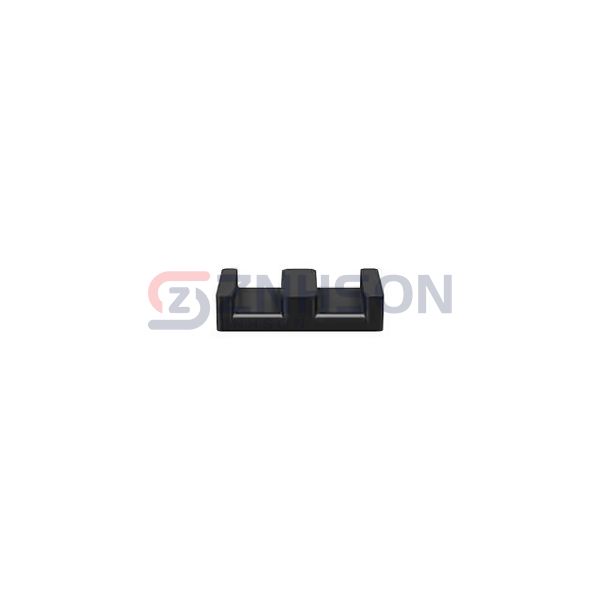

B66285G0050X187
EPCOS - TDK Electronics
EPCOS - TDK Electronics
ELP22/6/16 N87 GAP 0.05+-0.01 MM
$1.20
Available to order
Reference Price (USD)
1+
$1.20483
500+
$1.1927817
1000+
$1.1807334
1500+
$1.1686851
2000+
$1.1566368
2500+
$1.1445885
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with EPCOS - TDK Electronics B66285G0050X187 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Not For New Designs
- Core Type: ELP
- Supplier Device Package: ELP 22 x 6 x 16
- Material: N87
- Diameter: -
- Inductance Factor (Al): 1.52 µH
- Tolerance: ±25%
- Gap: Gapped
- Effective Permeability (µe): 78.3
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.41
- Effective Length (le) mm: 32.5
- Effective Area (Ae) mm²: 78.3
- Minimum Core Cross Section (Amin) mm²: 77.9
- Effective Magnetic Volume (Ve) mm³: 2540
- Finish: Uncoated
- Height: 0.224" (5.70mm)
- Length: 0.858" (21.80mm)
- Width: 0.622" (15.80mm)
Related Products
EPCOS - TDK Electronics
B66482G0000X608
Ferroxcube
TX39/20/13-3E10-M
Fair-Rite Products Corp.
5975004921
EPCOS - TDK Electronics
B66482K0000X192
Ferroxcube
T58/41/18-3C90
EPCOS - TDK Electronics
B66311G0170X127
TDK Corporation
PC95PQ60/42-Z
Fair-Rite Products Corp.
9578110502
Ferroxcube

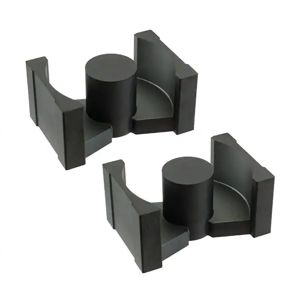

PQ40/40-3F36
