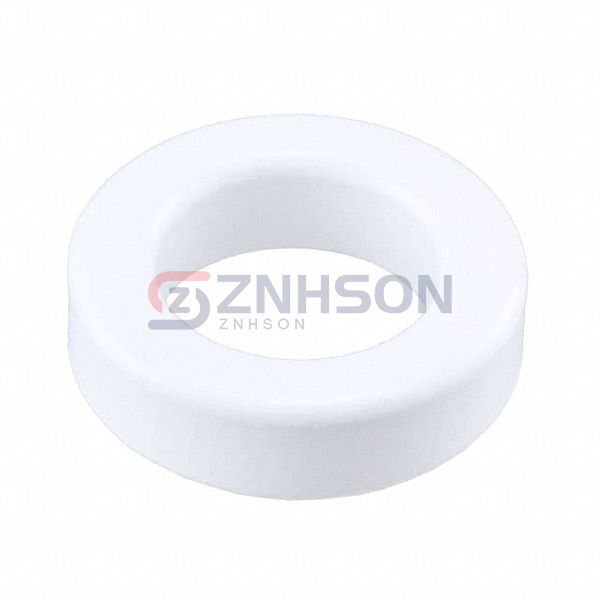

TX39/20/13-3E10-M
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$3.33
Available to order
Reference Price (USD)
1+
$3.27000
10+
$2.80300
25+
$2.10240
50+
$2.04400
100+
$1.81040
250+
$1.69364
500+
$1.57682
1,000+
$1.46003
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium Ferroxcube TX39/20/13-3E10-M Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 39 x 20 x 13
- Material: -
- Diameter: 1.567" (39.80mm)
- Inductance Factor (Al): -
- Tolerance: ±30%
- Gap: Ungapped
- Effective Permeability (µe): 10000
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.76
- Effective Length (le) mm: 84.9
- Effective Area (Ae) mm²: 112
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 9513
- Finish: Epoxy
- Height: 0.535" (13.60mm)
- Length: -
- Width: -
