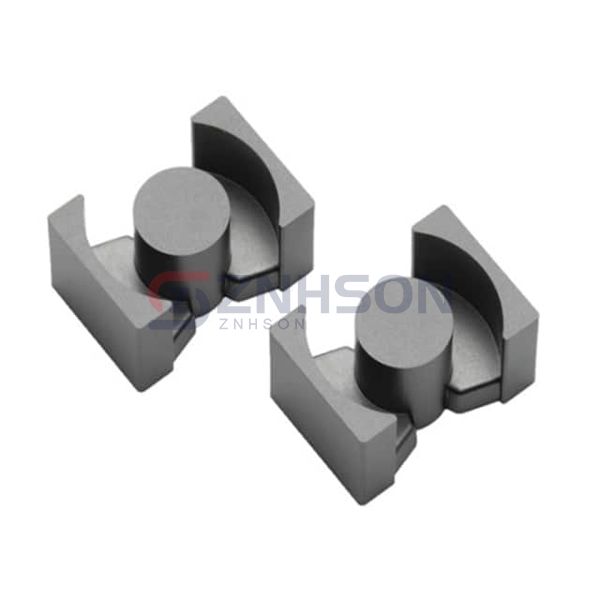

PC95PQ60/42-Z
TDK Corporation
TDK Corporation
FERRITE CORE PQ 14.3UH 2PC SET
$43.98
Available to order
Reference Price (USD)
1+
$43.99000
10+
$39.35500
30+
$31.02100
60+
$30.09500
120+
$26.39100
270+
$24.35381
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with TDK Corporation PC95PQ60/42-Z Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 60 x 42
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 14.3 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.2
- Effective Length (le) mm: 98.1
- Effective Area (Ae) mm²: 483
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 47360
- Finish: Uncoated
- Height: 1.634" (41.50mm)
- Length: 2.323" (59.00mm)
- Width: 1.535" (39.00mm)
