B66305G0130X187
EPCOS - TDK Electronics
EPCOS - TDK Electronics

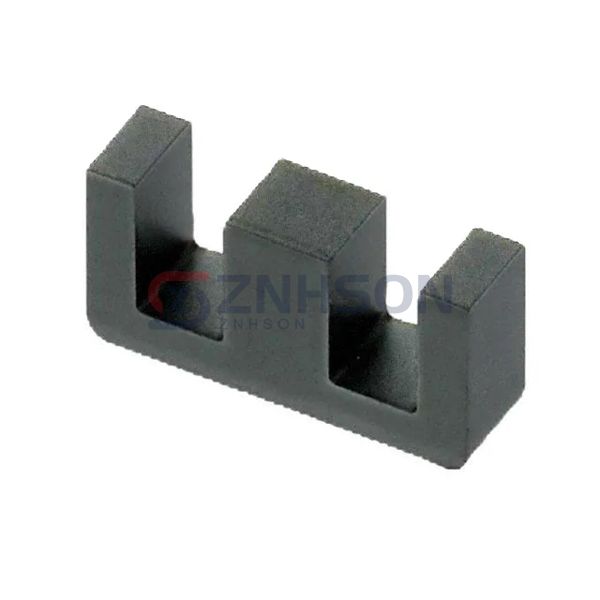

FERRITE CORE
$0.60
Available to order
Reference Price (USD)
1+
$0.48000
10+
$0.38200
25+
$0.32280
50+
$0.28380
100+
$0.25390
250+
$0.22108
500+
$0.20016
1,000+
$0.17029
5,000+
$0.15834
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B66305G0130X187 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: E 13 x 7 x 4
- Material: N87
- Diameter: -
- Inductance Factor (Al): 112 nH
- Tolerance: -
- Gap: Gapped
- Effective Permeability (µe): 215
- Initial Permeability (µi): 2200
- Core Factor (ΣI/A) mm-1: 2.39
- Effective Length (le) mm: 29.6
- Effective Area (Ae) mm²: 12.4
- Minimum Core Cross Section (Amin) mm²: 12.2
- Effective Magnetic Volume (Ve) mm³: 367
- Finish: Uncoated
- Height: 0.256" (6.50mm)
- Length: 0.496" (12.60mm)
- Width: 0.146" (3.70mm)
