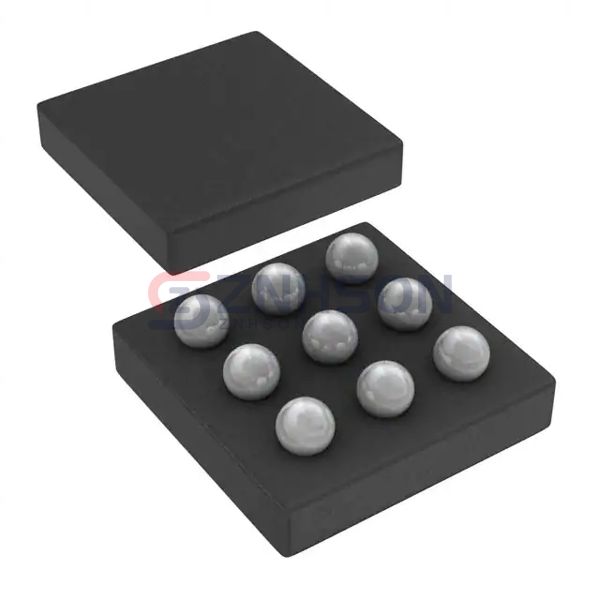

CSD22204W
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 5A 9DSBGA
$0.25
Available to order
Reference Price (USD)
1+
$0.24800
500+
$0.24552
1000+
$0.24304
1500+
$0.24056
2000+
$0.23808
2500+
$0.2356
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the power of CSD22204W, a premium Transistors - FETs, MOSFETs - Single from Texas Instruments. Part of the Discrete Semiconductor Products family, this MOSFET is tailored for high-efficiency power conversion and signal amplification. With its rugged construction and advanced technology, CSD22204W is suited for harsh environments and high-demand applications. Request a quote now to secure this essential component for your projects!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 9.9mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 24.6 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1130 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
Related Products
Infineon Technologies
IRFR2407TRLPBF
Vishay Siliconix
SUP50020E-GE3
Panjit International Inc.

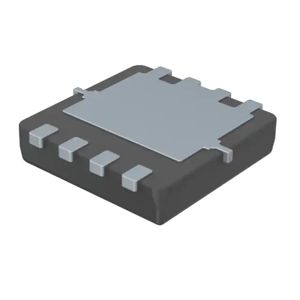

PJQ4448P-AU_R2_000A1
Fairchild Semiconductor
FDD6682
IXYS
IXTK120P20T
Infineon Technologies

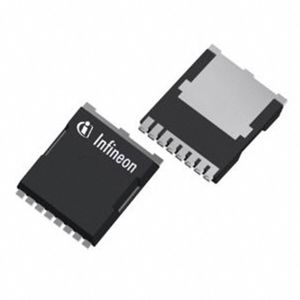

IPT65R033G7XTMA1
Diodes Incorporated

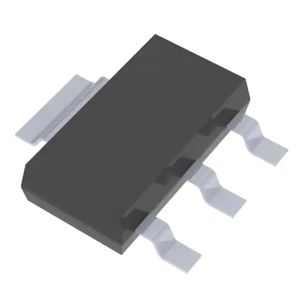

ZVN4210GTA
Infineon Technologies
AUIRF3805STRL
NTE Electronics, Inc

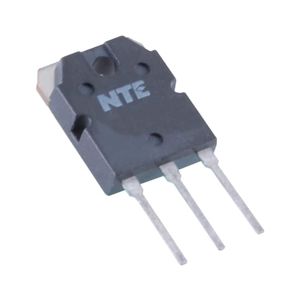

NTE2973
