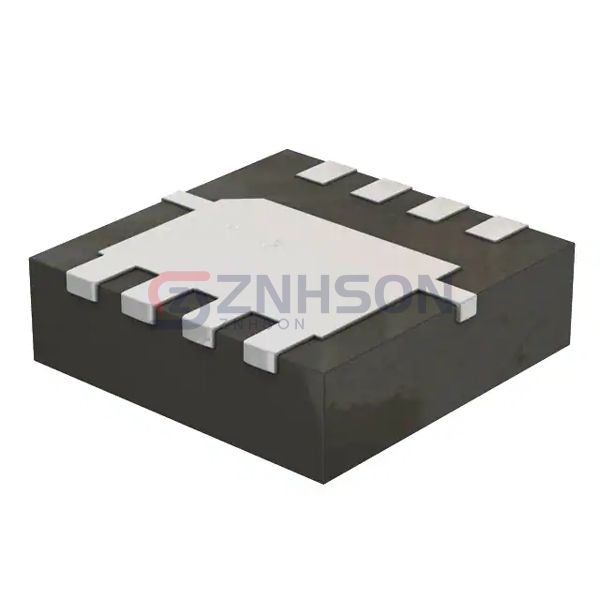

CSD25404Q3
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 104A 8VSON
$1.21
Available to order
Reference Price (USD)
1+
$1.21000
500+
$1.1979
1000+
$1.1858
1500+
$1.1737
2000+
$1.1616
2500+
$1.1495
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
CSD25404Q3 by Texas Instruments is a standout in the Discrete Semiconductor Products market, specifically for Transistors - FETs, MOSFETs - Single applications. Engineered for precision, this MOSFET offers exceptional gate control, low leakage current, and high power density. Ideal for use in audio amplifiers, DC-DC converters, and battery management systems, CSD25404Q3 ensures top-tier performance. Don t miss out on this versatile component request a sample or quote now!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 104A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 10A, 4.5V
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.1 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2120 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta), 96W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
Related Products
Nexperia USA Inc.
PSMN3R5-40YSDX
Microchip Technology
APT5017BVRG
Infineon Technologies
IPU80R1K2P7AKMA1
Infineon Technologies
SPB80N03S2L-05
Diodes Incorporated
DMN2230UQ-7
Rohm Semiconductor

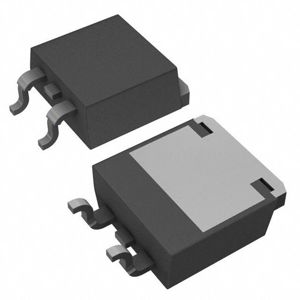

RCJ100N25TL
