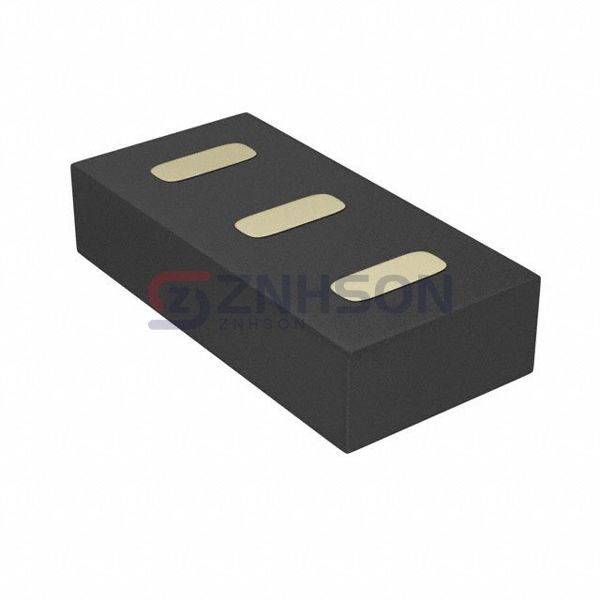

CSD25485F5T
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 5.3A 3PICOSTAR
$1.04
Available to order
Reference Price (USD)
1+
$1.04000
500+
$1.0296
1000+
$1.0192
1500+
$1.0088
2000+
$0.9984
2500+
$0.988
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with CSD25485F5T, a premium Transistors - FETs, MOSFETs - Single from Texas Instruments. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust CSD25485F5T for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 5.3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 8V
- Rds On (Max) @ Id, Vgs: 35mOhm @ 900mA, 8V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.5 nC @ 4.5 V
- Vgs (Max): -12V
- Input Capacitance (Ciss) (Max) @ Vds: 533 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.4W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-XFDFN
