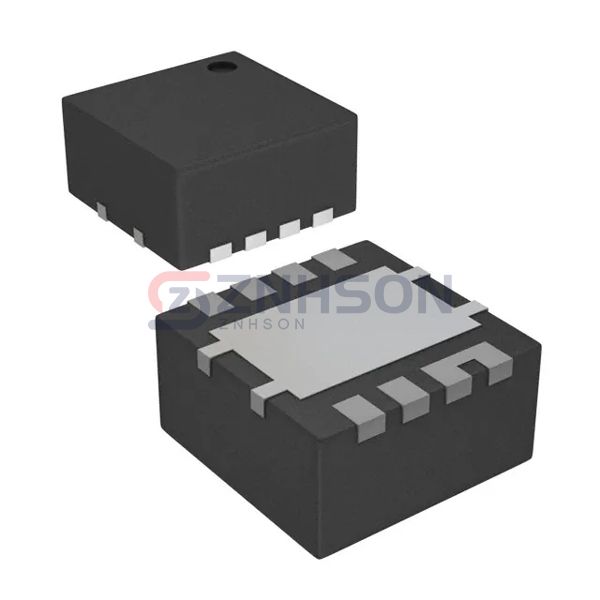

CSD86330Q3D
Texas Instruments
Texas Instruments
MOSFET 2N-CH 25V 20A 8LSON
$2.32
Available to order
Reference Price (USD)
2,500+
$0.86800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic circuits with Texas Instruments s CSD86330Q3D, a key player in the Discrete Semiconductor Products category for Transistors - FETs, MOSFETs - Arrays. These components are celebrated for their high efficiency, compact design, and long-lasting performance. Key features include fast switching, low threshold voltage, and superior thermal conductivity. Ideal for applications in power converters, RF amplifiers, and battery management systems. Reach out to us today to explore how CSD86330Q3D can elevate your design and operational efficiency.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 25V
- Current - Continuous Drain (Id) @ 25°C: 20A
- Rds On (Max) @ Id, Vgs: 9.6mOhm @ 14A, 8V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.2nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 920pF @ 12.5V
- Power - Max: 6W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerLDFN
- Supplier Device Package: 8-LSON (3.3x3.3)
Related Products
Taiwan Semiconductor Corporation
TSM250N02DCQ RFG
Alpha & Omega Semiconductor Inc.
AOD609
Renesas Electronics America Inc

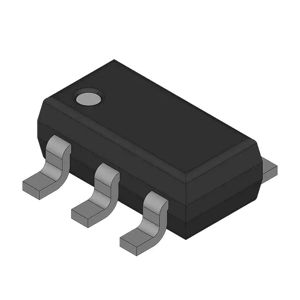

UPA602T-T2-A
Vishay Siliconix
SI4943CDY-T1-GE3
Rohm Semiconductor

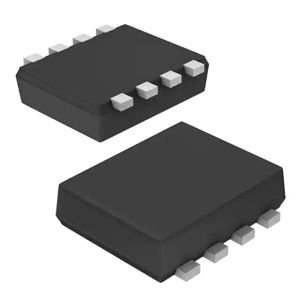

QH8JA1TCR
Infineon Technologies
IRF7306TRPBF
Nexperia USA Inc.
PHKD6N02LT,518
Wolfspeed, Inc.

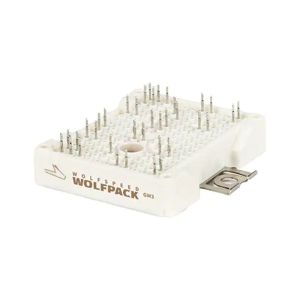

CAB008M12GM3
onsemi

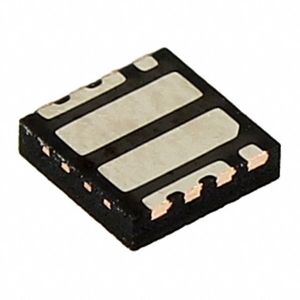

FDMC8097AC
