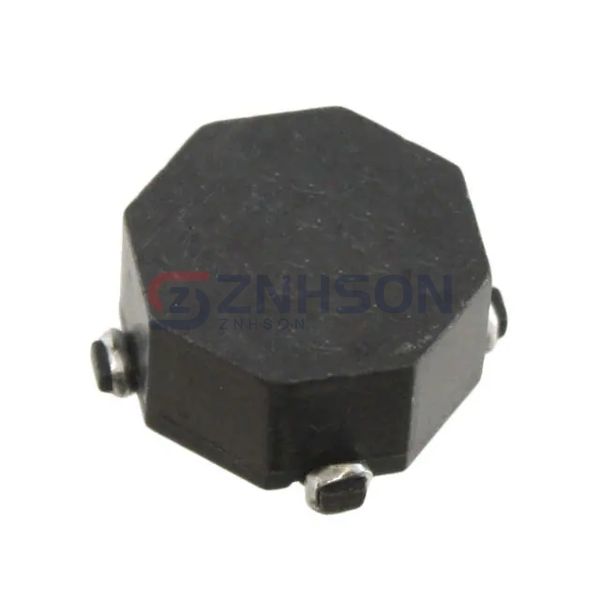

CTX15-4-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 14.16UH SMD
$7.19
Available to order
Reference Price (USD)
1+
$7.19000
500+
$7.1181
1000+
$7.0462
1500+
$6.9743
2000+
$6.9024
2500+
$6.8305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with CTX15-4-R Eaton - Electronics Division Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 14.16 µH
- Inductance - Connected In Series: 56.64 µH
- Tolerance: ±20%
- Current Rating - Parallel: 3 A
- Current Rating - Series: 1.5 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 24mOhm Max
- DC Resistance (DCR) - Series: 96mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.250" (6.35mm)
