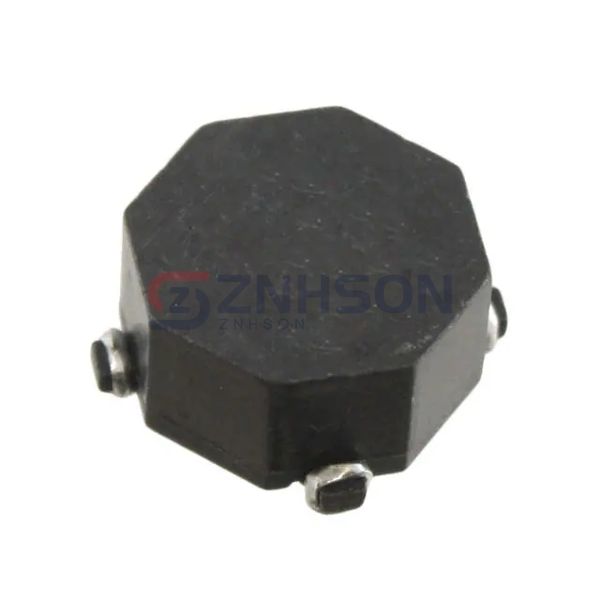

CTX150-4P-R
Eaton - Electronics Division
Eaton - Electronics Division
INDUCT ARRAY 2 COIL 149.45UH SMD
$3.61
Available to order
Reference Price (USD)
1+
$3.61000
500+
$3.5739
1000+
$3.5378
1500+
$3.5017
2000+
$3.4656
2500+
$3.4295
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CTX150-4P-R Eaton - Electronics Division Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 149.45 µH
- Inductance - Connected In Series: 597.8 µH
- Tolerance: ±20%
- Current Rating - Parallel: 640 mA
- Current Rating - Series: 320 mA
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 696mOhm Max
- DC Resistance (DCR) - Series: 2.784Ohm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
- Height: 0.250" (6.35mm)
