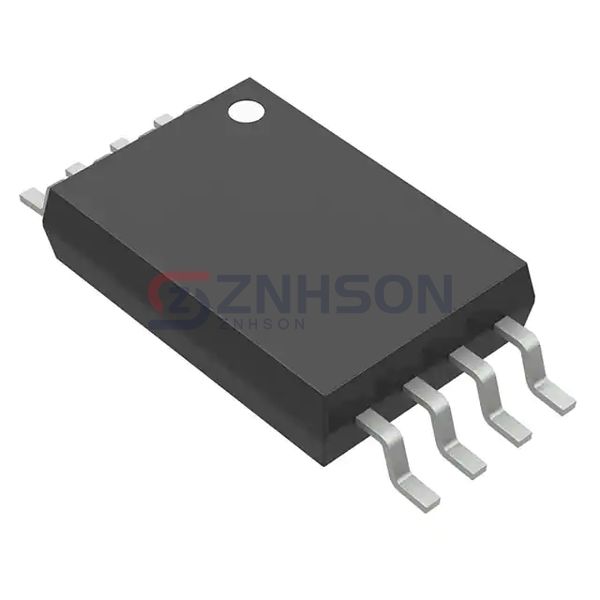

FDW2503NZ
Fairchild Semiconductor
Fairchild Semiconductor
SMALL SIGNAL N-CHANNEL MOSFET
$0.55
Available to order
Reference Price (USD)
1+
$0.55000
500+
$0.5445
1000+
$0.539
1500+
$0.5335
2000+
$0.528
2500+
$0.5225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic applications with Fairchild Semiconductor s FDW2503NZ, a leading product in the Discrete Semiconductor Products category for Transistors - FETs, MOSFETs - Arrays. These components are known for their high-speed performance, low energy consumption, and robust design. Perfect for use in switching regulators, audio systems, and communication devices. Discover the benefits of FDW2503NZ today get in touch with us for a detailed quote and technical support.
Specifications
- Product Status: Obsolete
- FET Type: 2 N-Channel (Dual)
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 5.5A
- Rds On (Max) @ Id, Vgs: 20mOhm @ 5.5A, 4.5V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 1286pF @ 10V
- Power - Max: 600mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 8-TSSOP
Related Products
Wolfspeed, Inc.
CAS175M12BM3
onsemi
ECH8663R-TL-H
STMicroelectronics
STS8DN3LLH5
Advanced Linear Devices Inc.
ALD110800SCL
Nexperia USA Inc.
BUK7K17-60EX
Infineon Technologies
BSZ15DC02KDHXTMA1
Diodes Incorporated
DMG1026UV-7
Alpha & Omega Semiconductor Inc.

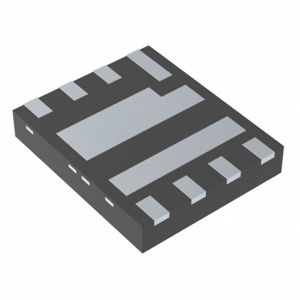

AOE6930
Nexperia USA Inc.

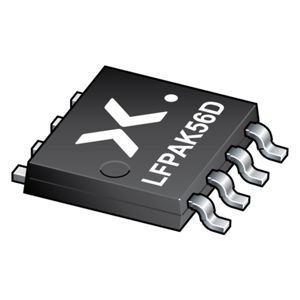

BUK7K5R6-30E,115
