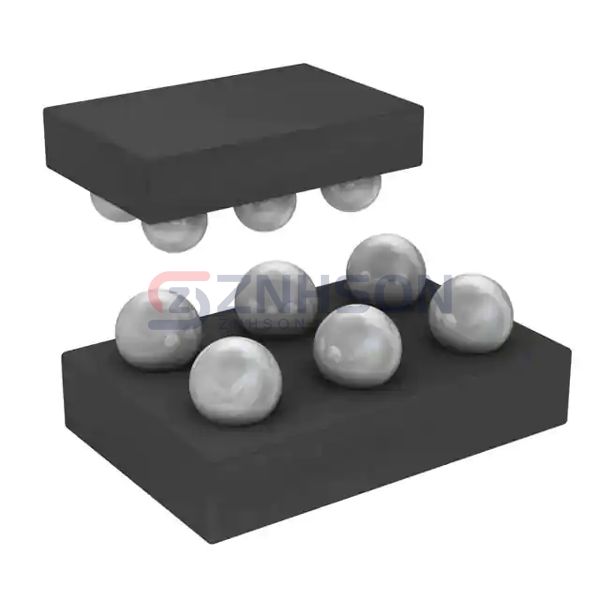

FDZ197PZ
Fairchild Semiconductor
Fairchild Semiconductor
3.8A, 20V, P-CHANNEL, MOSFET
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with FDZ197PZ, a premium Transistors - FETs, MOSFETs - Single from Fairchild Semiconductor. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust FDZ197PZ for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 3.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 64mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 25 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 1570 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.9W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-WLCSP (1.0x1.5)
- Package / Case: 6-UFBGA, WLCSP
Related Products
Alpha & Omega Semiconductor Inc.
AOD442G
STMicroelectronics
STW28N65M2
Vishay Siliconix
SIHP186N60EF-GE3
onsemi
NVMFS4C03NT3G
NTE Electronics, Inc
NTE2380
Infineon Technologies
IMZA65R083M1HXKSA1
Texas Instruments

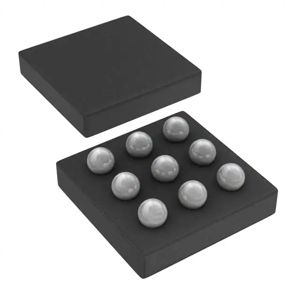

CSD22202W15
onsemi

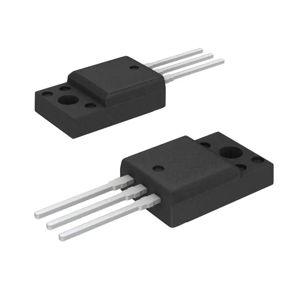

FQPF13N06L
Diodes Incorporated

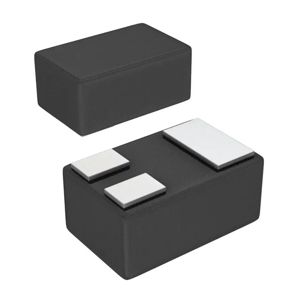

DMN2250UFB-7B
