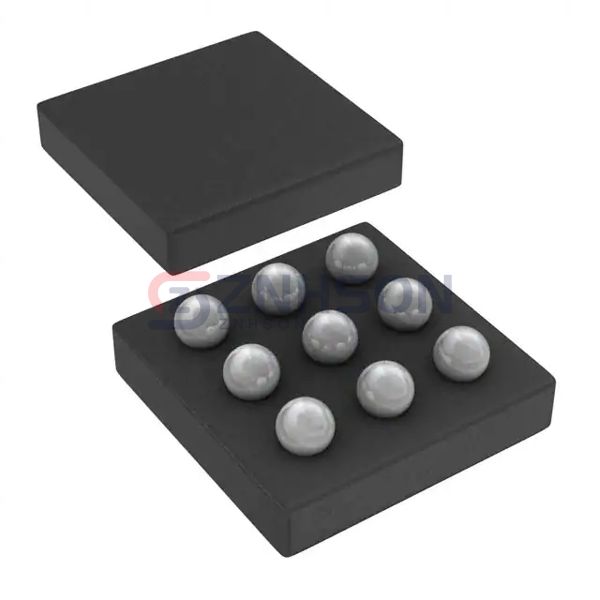

CSD22202W15
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 10A 9DSBGA
$0.77
Available to order
Reference Price (USD)
3,000+
$0.22910
6,000+
$0.22120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover CSD22202W15, a versatile Transistors - FETs, MOSFETs - Single solution from Texas Instruments, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 10A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 12.2mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.4 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1390 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 9-DSBGA
- Package / Case: 9-UFBGA, DSBGA
Related Products
onsemi
FQPF13N06L
Diodes Incorporated
DMN2250UFB-7B
onsemi
FDS86140
onsemi
NTMFS4708NT1G
Alpha & Omega Semiconductor Inc.
AOTF2610L
Vishay Siliconix
SI4431CDY-T1-GE3
Vishay Siliconix
SI4840BDY-T1-GE3

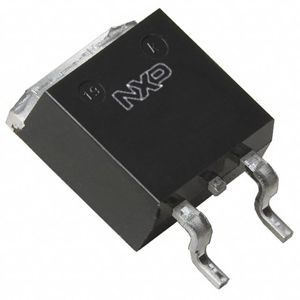

Nexperia USA Inc.
BUK661R9-40C,118

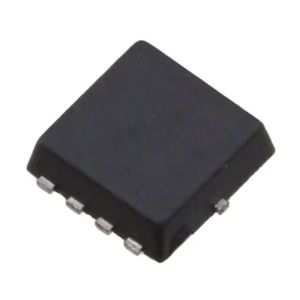

Toshiba Semiconductor and Storage
