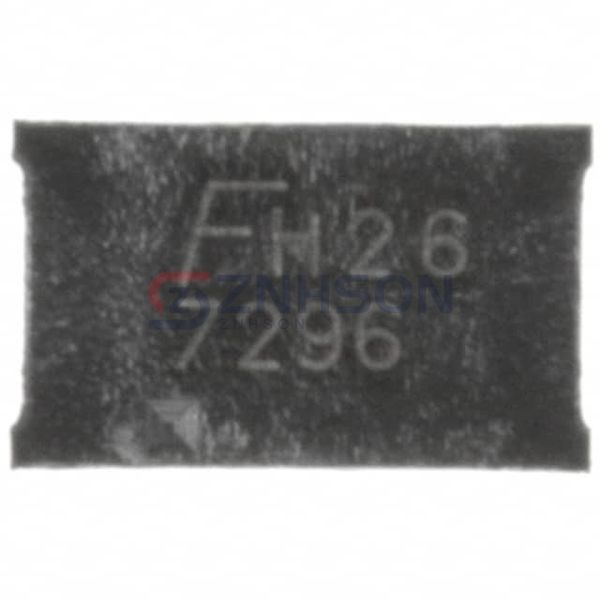

FDZ7296
Fairchild Semiconductor
Fairchild Semiconductor
MOSFET N-CH 30V 11A 18BGA
$0.67
Available to order
Reference Price (USD)
1+
$0.67000
500+
$0.6633
1000+
$0.6566
1500+
$0.6499
2000+
$0.6432
2500+
$0.6365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with FDZ7296, a premium Transistors - FETs, MOSFETs - Single from Fairchild Semiconductor. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust FDZ7296 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 11A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 8.5mOhm @ 11A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1520 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 18-BGA (2.5x4)
- Package / Case: 18-WFBGA
