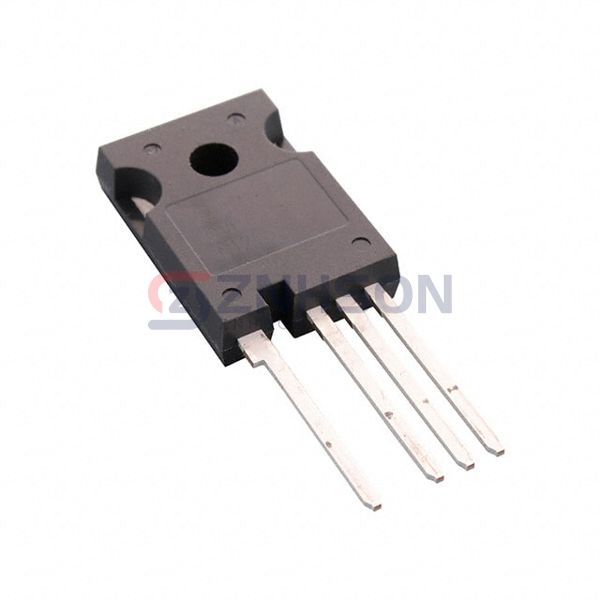

FGH40T120SQDNL4
onsemi
onsemi
IGBT 1200V 40A UFS FOR SO
$7.72
Available to order
Reference Price (USD)
1+
$7.67000
10+
$6.94800
450+
$5.55000
900+
$5.08380
1,350+
$4.46220
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize power control with FGH40T120SQDNL4 Single IGBTs from onsemi, a leader in semiconductor solutions. Suited for medical equipment, aerospace, and consumer electronics, these transistors deliver precise switching and minimal noise. Highlights include high input impedance, scalable power ratings, and RoHS compliance. onsemi ensures FGH40T120SQDNL4 meets rigorous performance benchmarks. Inquire today to find the perfect fit for your application!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 160 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 40A
- Power - Max: 454 W
- Switching Energy: 1.4mJ (on), 1.1mJ (off)
- Input Type: Standard
- Gate Charge: 221 nC
- Td (on/off) @ 25°C: 46ns/220ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 166 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-4
- Supplier Device Package: TO-247-4L
Related Products
onsemi
NGTG30N60FLWG
Infineon Technologies
IKW50N65F5FKSA1
Alpha & Omega Semiconductor Inc.
AOTF10B60D
Fairchild Semiconductor
FGA120N30DTU
Infineon Technologies
IKB03N120H2ATMA1
STMicroelectronics
STGB30H65FB
STMicroelectronics
STGP20M65DF2
STMicroelectronics
STGD6M65DF2
Infineon Technologies

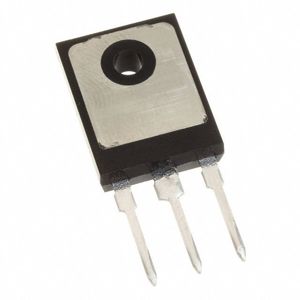

IHW30N65R5XKSA1
