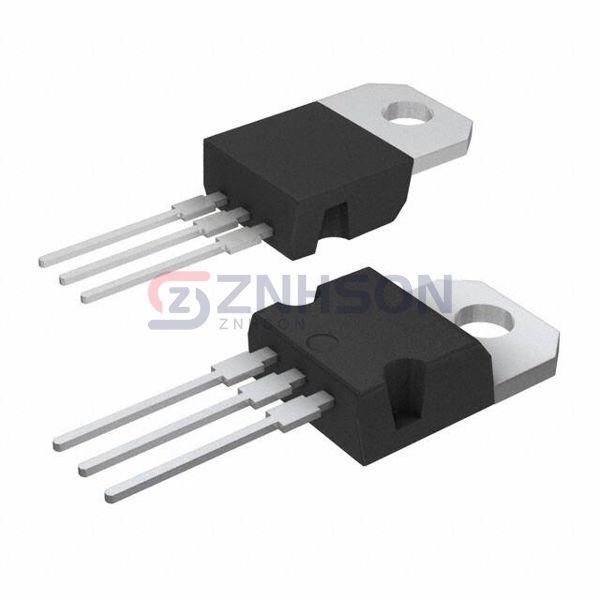

STGP20M65DF2
STMicroelectronics
STMicroelectronics
IGBT TRENCH 650V 40A TO220
$2.86
Available to order
Reference Price (USD)
1+
$2.44000
10+
$2.20600
100+
$1.80050
500+
$1.50440
1,000+
$1.27068
3,000+
$1.19277
5,000+
$1.17978
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGP20M65DF2 Single IGBT by STMicroelectronics sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with STMicroelectronics for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 20A
- Power - Max: 166 W
- Switching Energy: 140µJ (on), 560µJ (off)
- Input Type: Standard
- Gate Charge: 63 nC
- Td (on/off) @ 25°C: 26ns/108ns
- Test Condition: 400V, 20A, 12Ohm, 15V
- Reverse Recovery Time (trr): 166 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220
