FTSH-130-01-F-MT
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 60POS 1.27MM
$12.00
Available to order
Reference Price (USD)
1+
$7.15000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with FTSH-130-01-F-MT Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Cuttable
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount, Right Angle; Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.135" (3.43mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3.4A per Contact
- Voltage Rating: -
Related Products
3M
N3433-1202RB
Mill-Max Manufacturing Corp.
800-10-051-10-001000
Samtec Inc.
FTS-112-02-F-DV-A
TE Connectivity AMP Connectors
87220-3
Sullins Connector Solutions

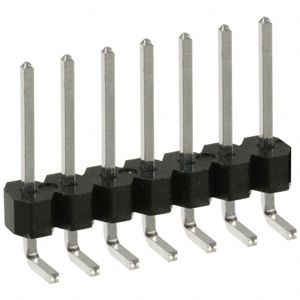

PEC07SGAN
Sullins Connector Solutions

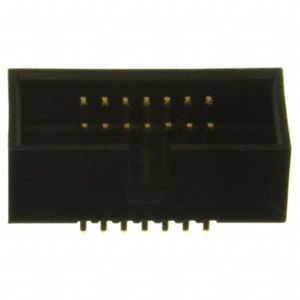

SBH41-NBPB-D07-ST-BK
Samtec Inc.
TMM-118-02-L-D
Cvilux USA

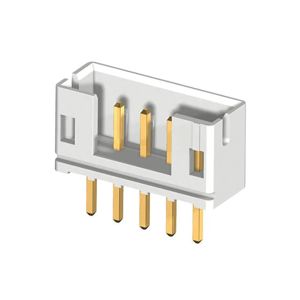

CI0103P1VK0-NH
Samtec Inc.

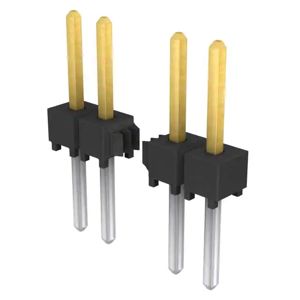

TSW-112-26-L-S
