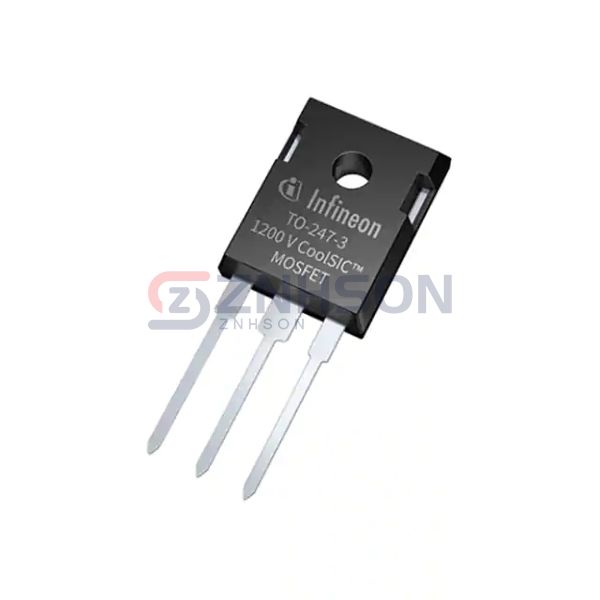

IMW120R045M1XKSA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 52A TO247-3
$23.72
Available to order
Reference Price (USD)
1+
$23.72000
500+
$23.4828
1000+
$23.2456
1500+
$23.0084
2000+
$22.7712
2500+
$22.534
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with IMW120R045M1XKSA1, a premium Transistors - FETs, MOSFETs - Single from Infineon Technologies. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust IMW120R045M1XKSA1 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V
- Rds On (Max) @ Id, Vgs: 59mOhm @ 20A, 15V
- Vgs(th) (Max) @ Id: 5.7V @ 10mA
- Gate Charge (Qg) (Max) @ Vgs: 52 nC @ 15 V
- Vgs (Max): +20V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 1900 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 228W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO247-3-41
- Package / Case: TO-247-3
