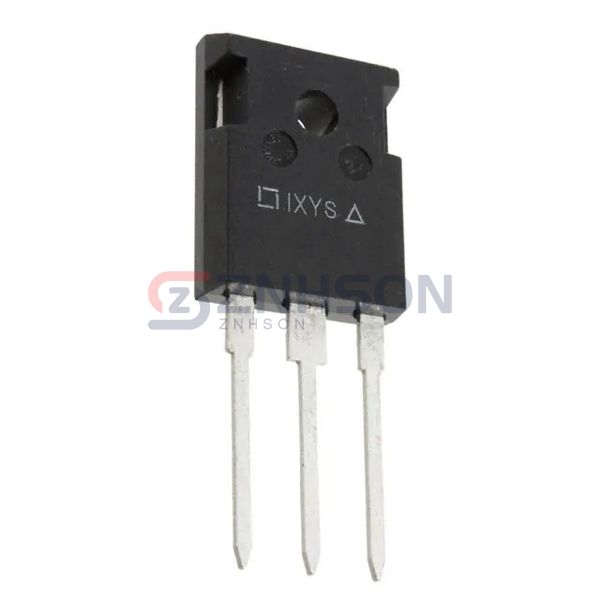

IXDH20N120D1
IXYS
IXYS
IGBT 1200V 38A 200W TO247AD
$8.23
Available to order
Reference Price (USD)
30+
$7.31867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IXDH20N120D1 Single IGBTs from IXYS, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, IXDH20N120D1 ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 38 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 3V @ 15V, 20A
- Power - Max: 200 W
- Switching Energy: 3.1mJ (on), 2.4mJ (off)
- Input Type: Standard
- Gate Charge: 70 nC
- Td (on/off) @ 25°C: -
- Test Condition: 600V, 20A, 82Ohm, 15V
- Reverse Recovery Time (trr): 40 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
