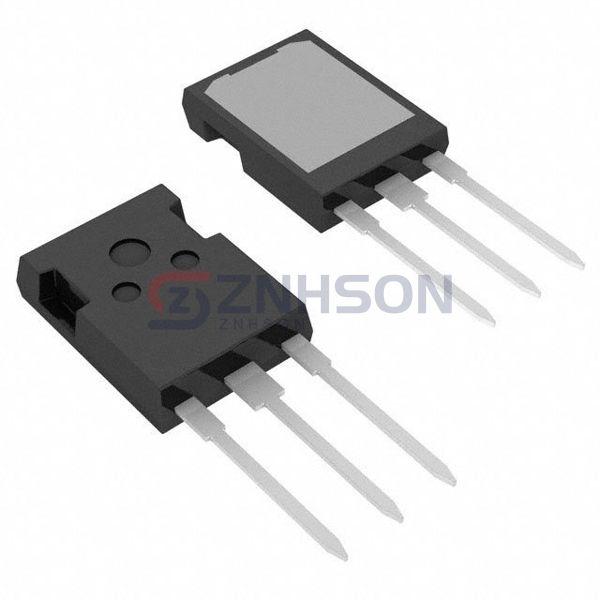

IXGX55N120A3H1
IXYS
IXYS
IGBT 1200V 125A 460W PLUS247
$16.40
Available to order
Reference Price (USD)
30+
$14.56867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGX55N120A3H1 Single IGBT from IXYS delivers unmatched performance in power conversion and control. Ideal for UPS systems, induction heating, and industrial automation, this transistor combines high efficiency with rugged reliability. Features such as short-circuit protection and low EMI make it a standout choice. IXYS's commitment to innovation ensures IXGX55N120A3H1 meets the demands of modern electronics. Get in touch for bulk orders and customization options!
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 125 A
- Current - Collector Pulsed (Icm): 400 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 55A
- Power - Max: 460 W
- Switching Energy: 5.1mJ (on), 13.3mJ (off)
- Input Type: Standard
- Gate Charge: 185 nC
- Td (on/off) @ 25°C: 23ns/365ns
- Test Condition: 960V, 55A, 3Ohm, 15V
- Reverse Recovery Time (trr): 200 ns
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
