IXYH40N120B3
IXYS
IXYS
IGBT 1200V 96A 577W TO247
$11.22
Available to order
Reference Price (USD)
30+
$9.96500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize energy efficiency with IXYH40N120B3 Single IGBTs by IXYS, a trusted name in discrete semiconductors. Suitable for solar inverters, motor controllers, and more, these transistors feature low conduction loss and high switching frequency. Their robust design ensures long-term performance even in harsh environments. Choose IXYH40N120B3 for your next project and experience the IXYS difference. Submit your inquiry today for expert assistance!
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 96 A
- Current - Collector Pulsed (Icm): 200 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 40A
- Power - Max: 577 W
- Switching Energy: 2.7mJ (on), 1.6mJ (off)
- Input Type: Standard
- Gate Charge: 87 nC
- Td (on/off) @ 25°C: 22ns/177ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 (IXTH)
Related Products
onsemi
FGP5N60LS
STMicroelectronics
STGB30V60DF
STMicroelectronics
STGWA40H65DFB
Infineon Technologies
IGP30N65H5XKSA1
Harris Corporation
HGT1S20N35F3VLR4505
Renesas Electronics America Inc

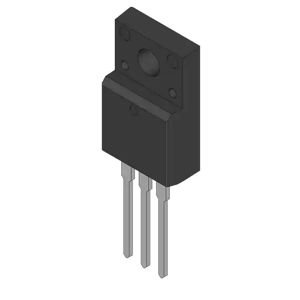

RJP3042DPP-00#T2
STMicroelectronics
STGWA40HP65FB2
Microchip Technology

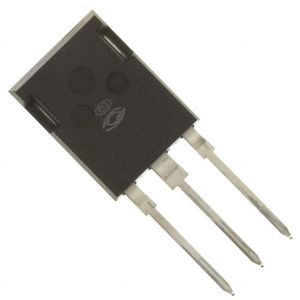

APT75GN120B2G
