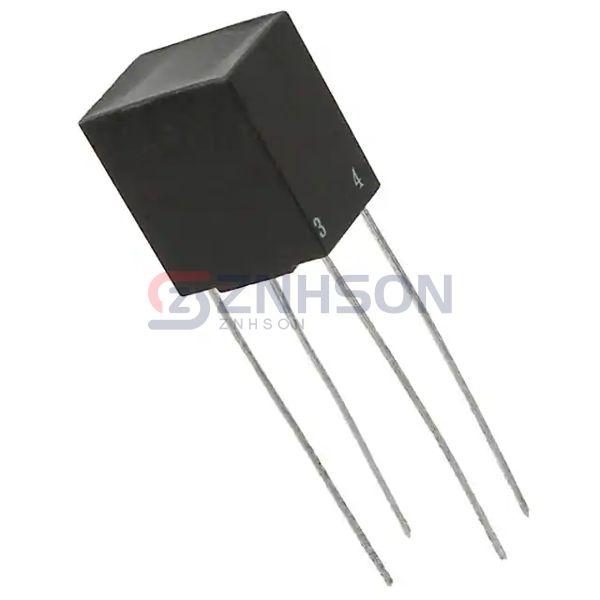

MET-39-T
Triad Magnetics
Triad Magnetics
TRANSFORMER 500:50 3.0MADC
$11.39
Available to order
Reference Price (USD)
1+
$10.63000
10+
$8.14500
25+
$6.90040
50+
$6.78720
100+
$6.44780
250+
$6.37996
500+
$6.28948
1,000+
$6.22160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Triad Magnetics MET-39-T Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Triad Magnetics for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 3.16:1
- Impedance - Primary (Ohms): 500
- Impedance - Secondary (Ohms): 50
- DC Resistance (DCR) - Primary: 55Ohm
- DC Resistance (DCR) - Secondary: 8Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
