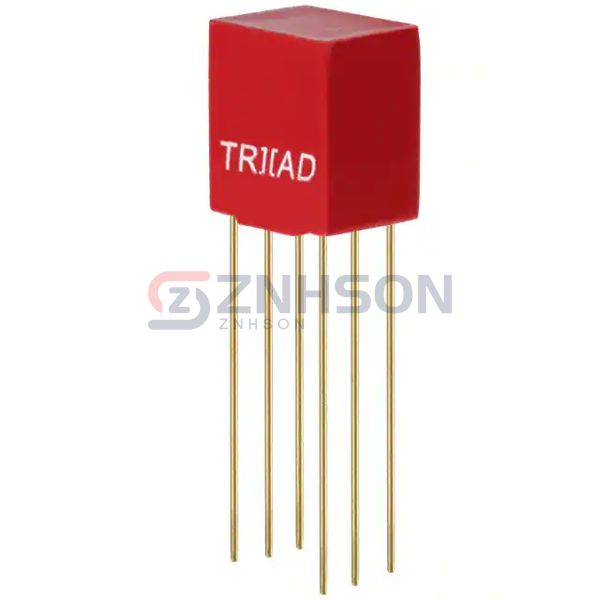

SP-69
Triad Magnetics
Triad Magnetics
TRANS 600/ 600CT 150 SPLIT AUDIO
$19.92
Available to order
Reference Price (USD)
1+
$18.26000
10+
$13.91400
25+
$12.82680
50+
$12.39200
100+
$12.17450
250+
$11.73972
500+
$11.30494
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your audio systems with Triad Magnetics SP-69 Audio Transformers, engineered for superior sound quality and durability. Ideal for amplifiers, mixers, and other audio devices, these transformers ensure minimal distortion and maximum efficiency. Trust Triad Magnetics for top-tier components that meet your audio needs. Request a quote now and experience the difference in your sound applications.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2:1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600, 150/150
- DC Resistance (DCR) - Primary: 72Ohm
- DC Resistance (DCR) - Secondary: 40Ohm, 45Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
