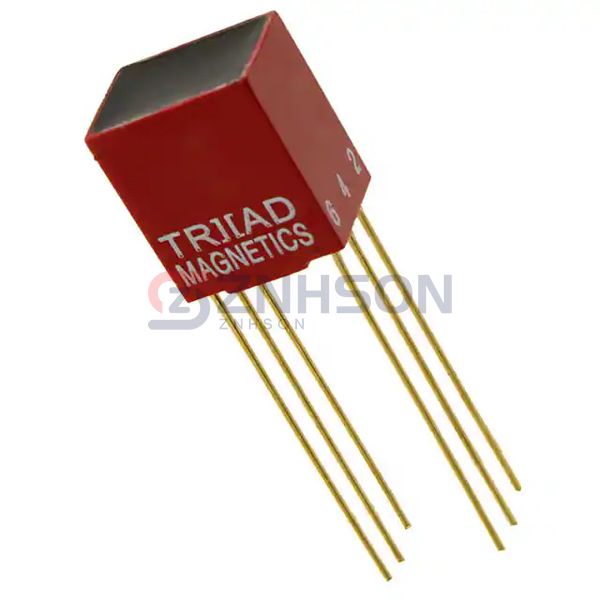

SP-21-B
Triad Magnetics
Triad Magnetics
TRANSF 10K CT/ 2K CT AUDIO
$12.15
Available to order
Reference Price (USD)
672+
$9.87376
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your sound engineering with Triad Magnetics SP-21-B Audio Transformers, designed for accuracy and durability. Widely used in audio interfaces, microphones, and speakers, these transformers ensure seamless signal conversion. Triad Magnetics is your go-to source for premium audio components. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2.24:1
- Impedance - Primary (Ohms): 10kCT
- Impedance - Secondary (Ohms): 2kCT
- DC Resistance (DCR) - Primary: 1.05kOhm
- DC Resistance (DCR) - Secondary: 330Ohm
- Transformer Type: Audio Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -40°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.410" L x 0.310" W (10.41mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
