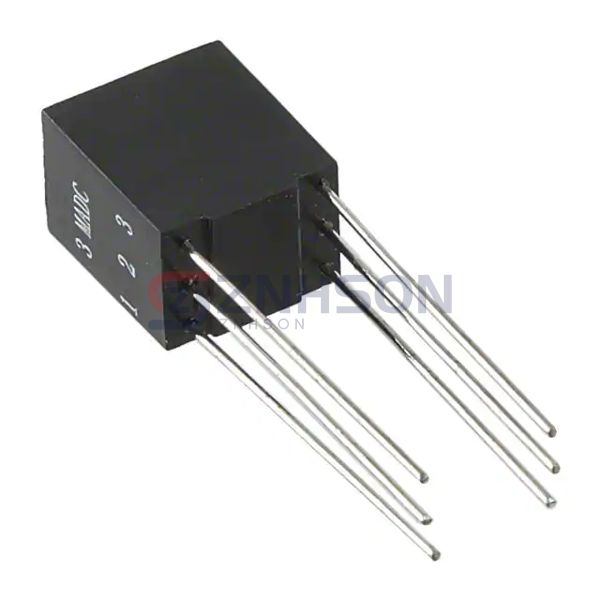

MET-42-T
Triad Magnetics
Triad Magnetics
AUDIO XFMR 150/12 THRU HOLE
$14.35
Available to order
Reference Price (USD)
1+
$10.11000
10+
$7.74500
25+
$6.56160
50+
$6.45400
100+
$6.13120
250+
$6.06668
500+
$5.98062
1,000+
$5.91608
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your sound engineering with Triad Magnetics MET-42-T Audio Transformers, designed for accuracy and durability. Widely used in audio interfaces, microphones, and speakers, these transformers ensure seamless signal conversion. Triad Magnetics is your go-to source for premium audio components. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 3.54:1
- Impedance - Primary (Ohms): 150
- Impedance - Secondary (Ohms): 12
- DC Resistance (DCR) - Primary: 20Ohm
- DC Resistance (DCR) - Secondary: 2.5Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
