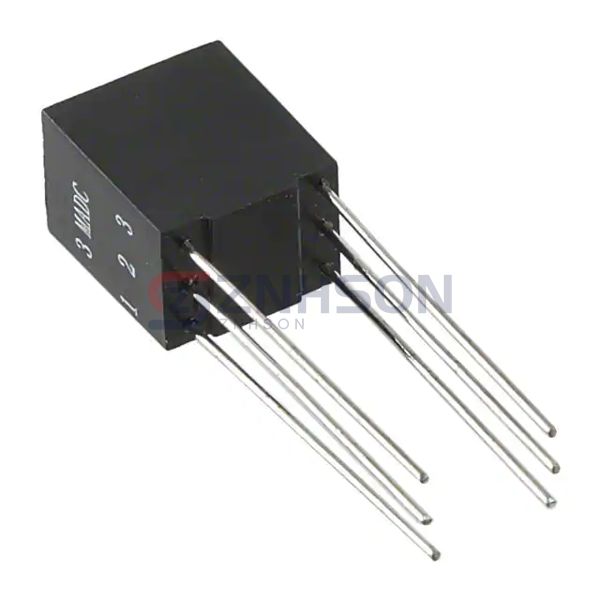

MET-59-T
Triad Magnetics
Triad Magnetics
AUDIO XFMR 600/150:150 THRU HOLE
$12.13
Available to order
Reference Price (USD)
1+
$11.33000
10+
$8.37000
25+
$7.72640
50+
$7.46900
100+
$7.26290
250+
$7.15988
500+
$7.08262
1,000+
$6.95385
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your audio experience with Triad Magnetics MET-59-T Audio Transformers, offering unmatched performance and reliability. These transformers are widely used in broadcasting, recording, and live sound applications, providing clear and consistent audio signals. Choose Triad Magnetics for components that stand the test of time. Get in touch today to learn more and place your order.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 2:1:1
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 150/150
- DC Resistance (DCR) - Primary: 70Ohm
- DC Resistance (DCR) - Secondary: 95Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 100kHz
- Frequency Response: ±2dB
- Voltage - Isolation: 1000VRMS @ 1 Second
- Insertion Loss: -
- Return Loss: -
- Power Level: 50mW
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 0.409" L x 0.310" W (10.40mm x 7.87mm)
- Height - Seated (Max): 0.465" (11.80mm)
- Termination Style: PC Pin
