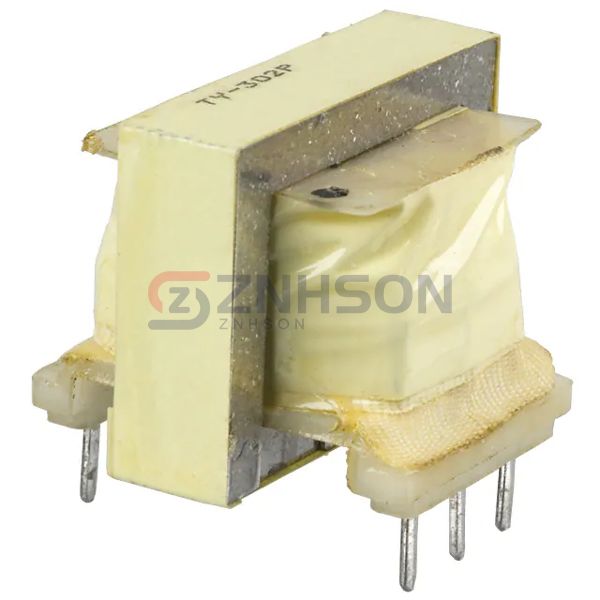

TY-302P-B
Triad Magnetics
Triad Magnetics
TRANSF 600 OHM 0MA DC TEL HYBRID
$4.55
Available to order
Reference Price (USD)
240+
$4.46017
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your audio setups with Triad Magnetics TY-302P-B Audio Transformers, crafted for precision and high fidelity. Suitable for both professional and hobbyist applications, these transformers deliver excellent frequency response and isolation. Depend on Triad Magnetics for quality that exceeds expectations. Submit your inquiry now and take the first step toward superior audio performance.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: 1:1.47
- Impedance - Primary (Ohms): 600
- Impedance - Secondary (Ohms): 600/600
- DC Resistance (DCR) - Primary: 34Ohm
- DC Resistance (DCR) - Secondary: 24Ohm, 24Ohm
- Transformer Type: Data/Voice Coupling
- Frequency Range: 300Hz ~ 3.5kHz
- Frequency Response: -
- Voltage - Isolation: 1500VAC
- Insertion Loss: 0.65dB Typ
- Return Loss: 32dB Typ
- Power Level: -45dB ~ 7dB
- Operating Temperature: -20°C ~ 85°C
- Approval Agency: -
- Mounting Type: Through Hole
- Size / Dimension: 1.040" L x 0.960" W (26.42mm x 24.38mm)
- Height - Seated (Max): 0.870" (22.10mm)
- Termination Style: PC Pin
