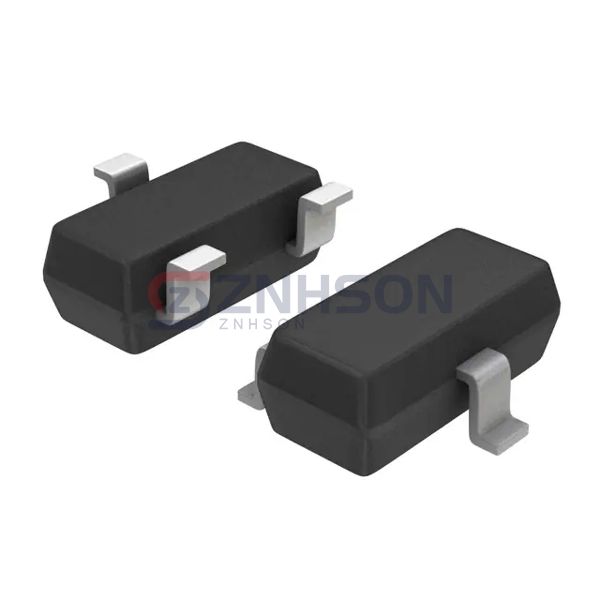

MGSF2N02ELT1G
onsemi
onsemi
MOSFET N-CH 20V 2.8A SOT23-3
$0.45
Available to order
Reference Price (USD)
3,000+
$0.13468
6,000+
$0.12691
15,000+
$0.11913
30,000+
$0.10980
75,000+
$0.10591
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover MGSF2N02ELT1G, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 85mOhm @ 3.6A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 3.5 nC @ 4 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 150 pF @ 5 V
- FET Feature: -
- Power Dissipation (Max): 1.25W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-3 (TO-236)
- Package / Case: TO-236-3, SC-59, SOT-23-3
