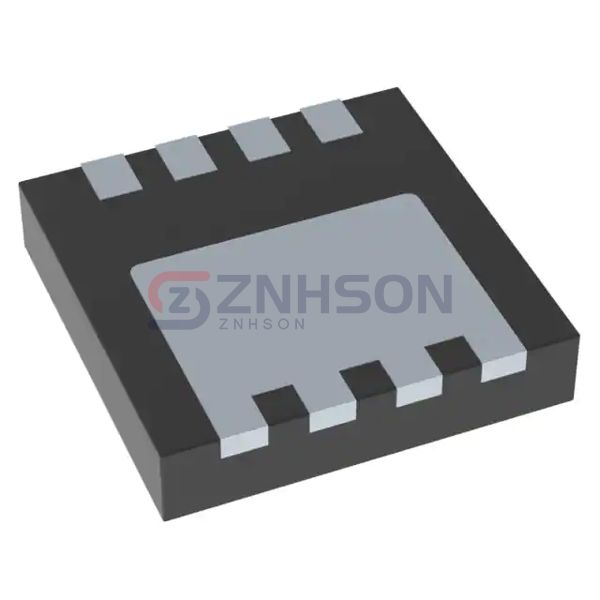

NTTFS1D8N02P1E
onsemi
onsemi
MOSFET N-CH 25V 20A/152A 8PQFN
$2.64
Available to order
Reference Price (USD)
1+
$2.64000
500+
$2.6136
1000+
$2.5872
1500+
$2.5608
2000+
$2.5344
2500+
$2.508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with NTTFS1D8N02P1E, a premium Transistors - FETs, MOSFETs - Single from onsemi. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust NTTFS1D8N02P1E for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 20A (Ta), 152A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id: 2V @ 700µA
- Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 10 V
- Vgs (Max): +16V, -12V
- Input Capacitance (Ciss) (Max) @ Vds: 3159 pF @ 13 V
- FET Feature: -
- Power Dissipation (Max): 800mW (Ta), 48W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
