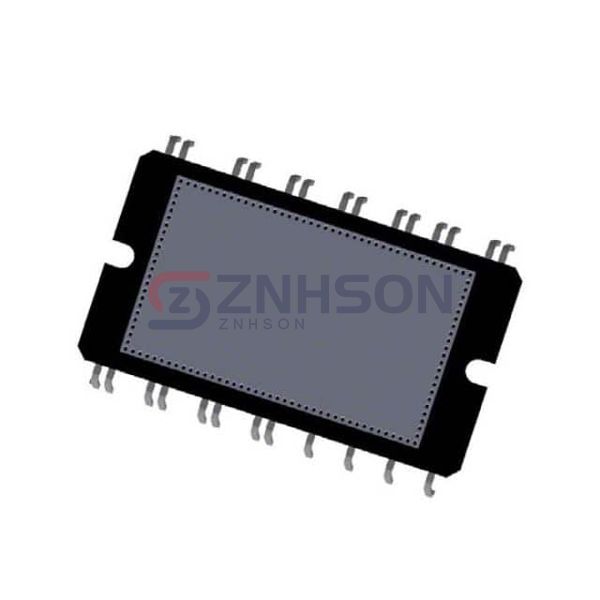

NXH25C120L2C2SG
onsemi
onsemi
IGBT MODULE, CIB 1200 V, 25 A IG
$60.63
Available to order
Reference Price (USD)
1+
$60.63000
500+
$60.0237
1000+
$59.4174
1500+
$58.8111
2000+
$58.2048
2500+
$57.5985
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance NXH25C120L2C2SG IGBT Modules from onsemi, designed for robust power management in industrial applications. These modules feature advanced thermal management, high voltage tolerance, and efficient switching capabilities, making them ideal for motor drives, renewable energy systems, and power supplies. Upgrade your systems with reliable onsemi technology. Contact us today for a quote!
Specifications
- Product Status: Active
- IGBT Type: -
- Configuration: Three Phase Inverter with Brake
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 25 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 25A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 6.2 nF @ 20 V
- Input: Three Phase Bridge Rectifier
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: 26-PowerDIP Module (1.199", 47.20mm)
- Supplier Device Package: 26-DIP
