P0178NL
Pulse Electronics Power
Pulse Electronics Power

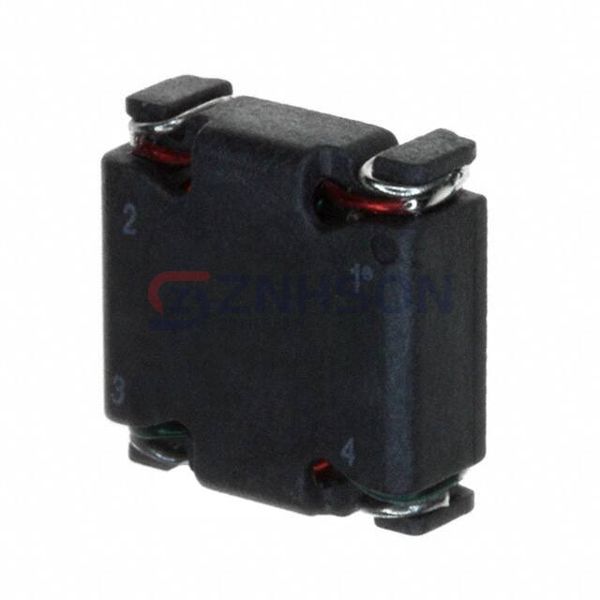

INDUCT ARRAY 2 COIL 15.7UH SMD
$5.72
Available to order
Reference Price (USD)
1+
$5.72000
500+
$5.6628
1000+
$5.6056
1500+
$5.5484
2000+
$5.4912
2500+
$5.434
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with P0178NL Pulse Electronics Power Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 15.7 µH
- Inductance - Connected In Series: 62.8 µH
- Tolerance: ±10%
- Current Rating - Parallel: 3.1 A
- Current Rating - Series: 1.54 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 45.3mOhm Max
- DC Resistance (DCR) - Series: 182mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 130°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height: 0.215" (5.46mm)
